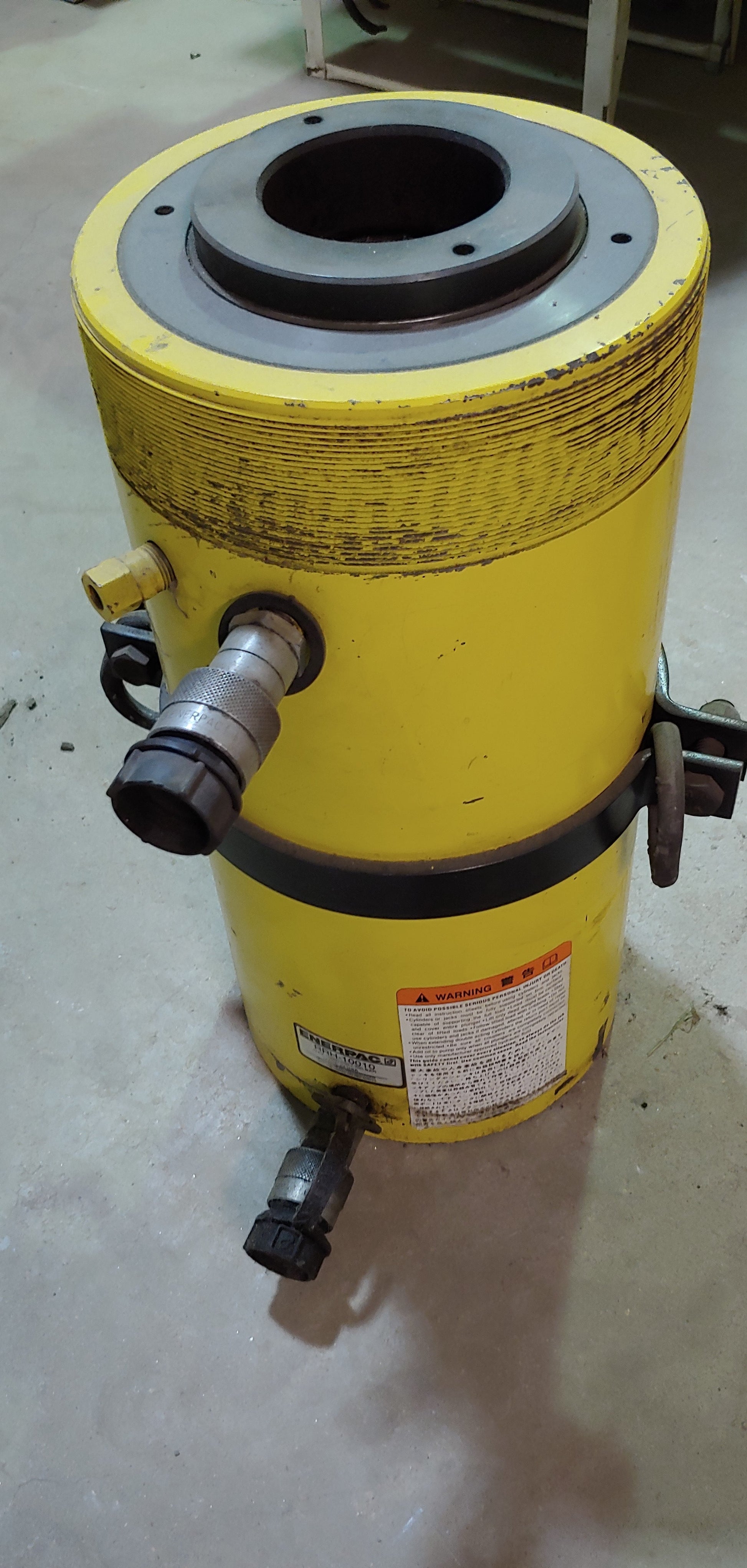

100 Ton Enerpac RRH-10010 portable Jack on heavy duty caster frame
Couldn't load pickup availability
100 Ton Enerpac RRH-10010 portable Jack on heavy duty caster frame

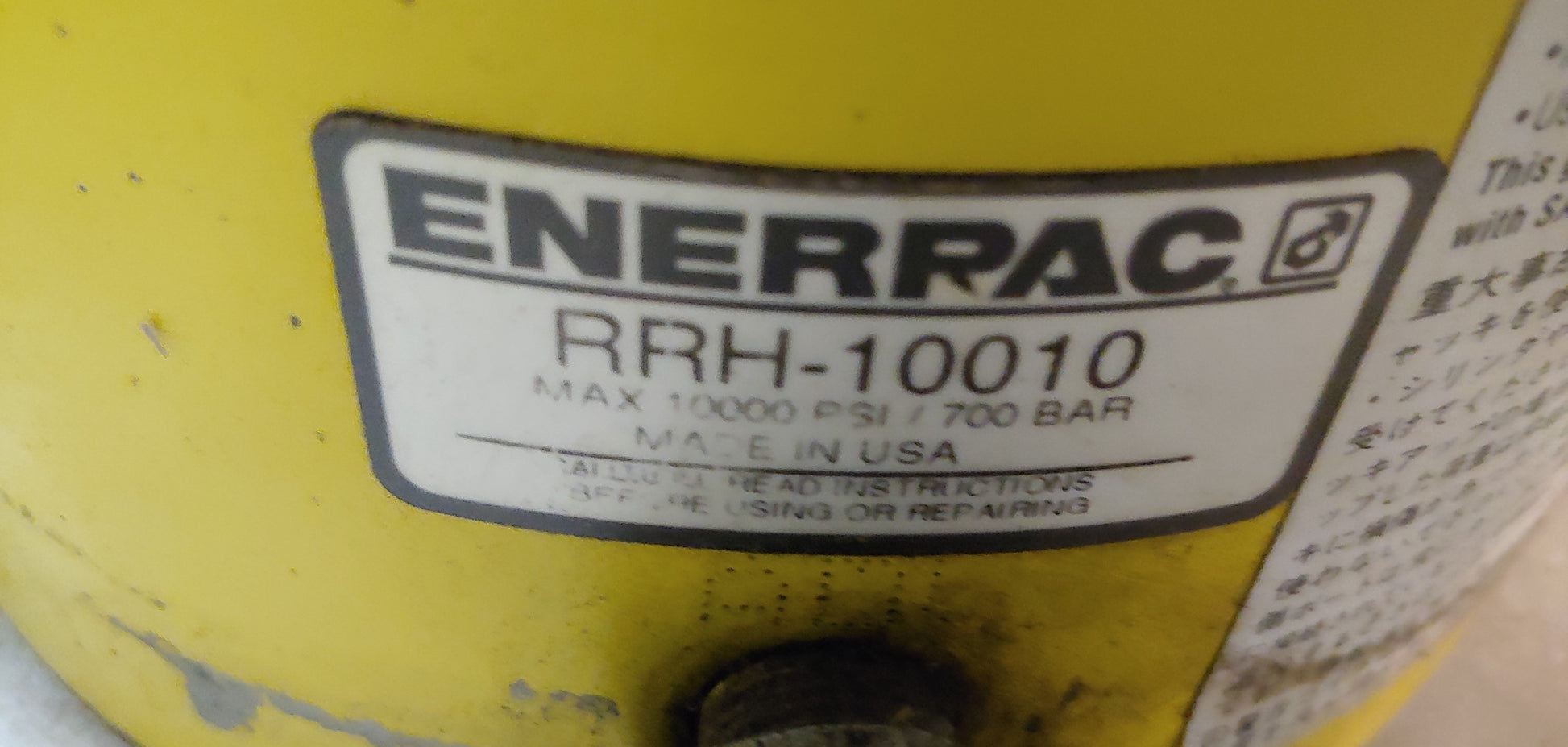

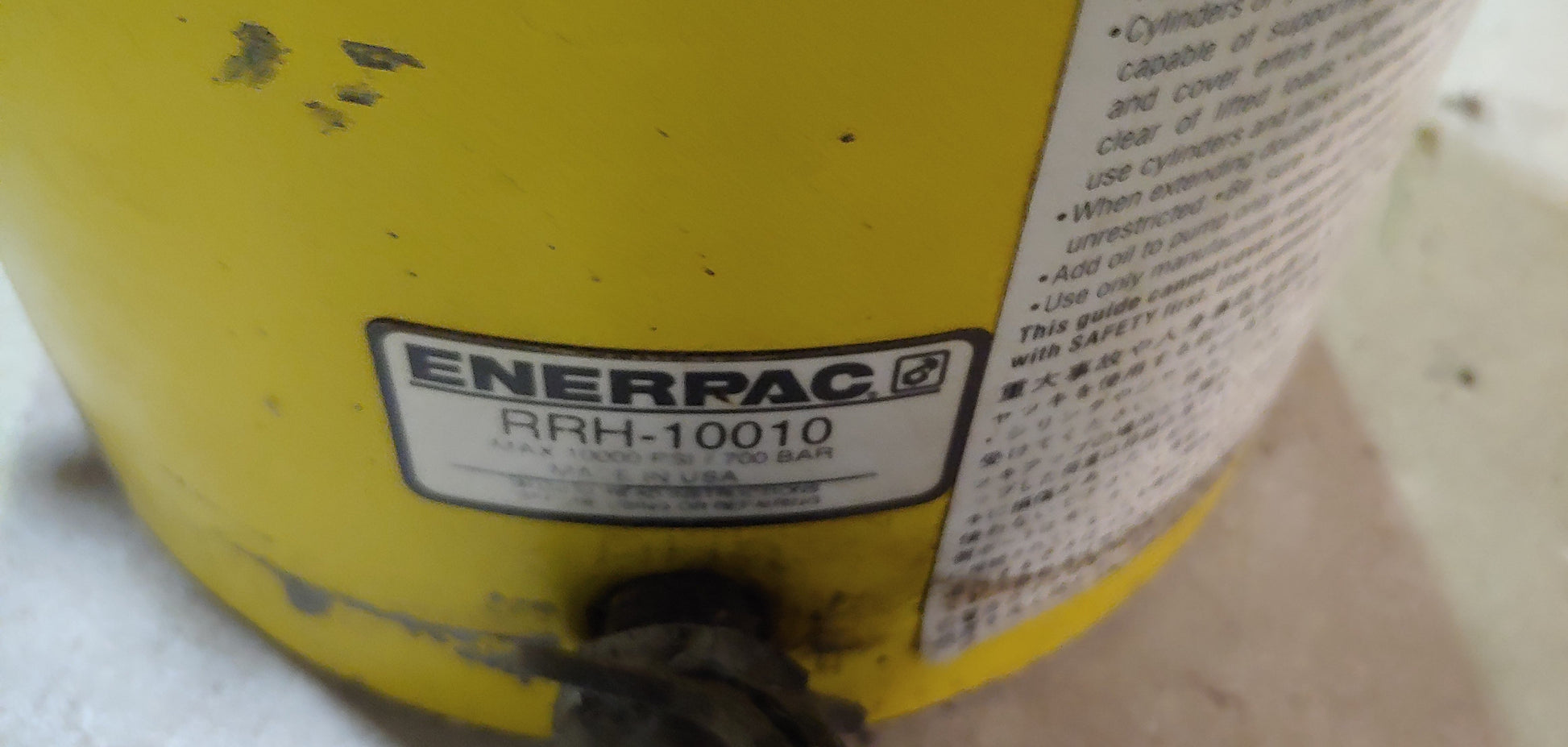

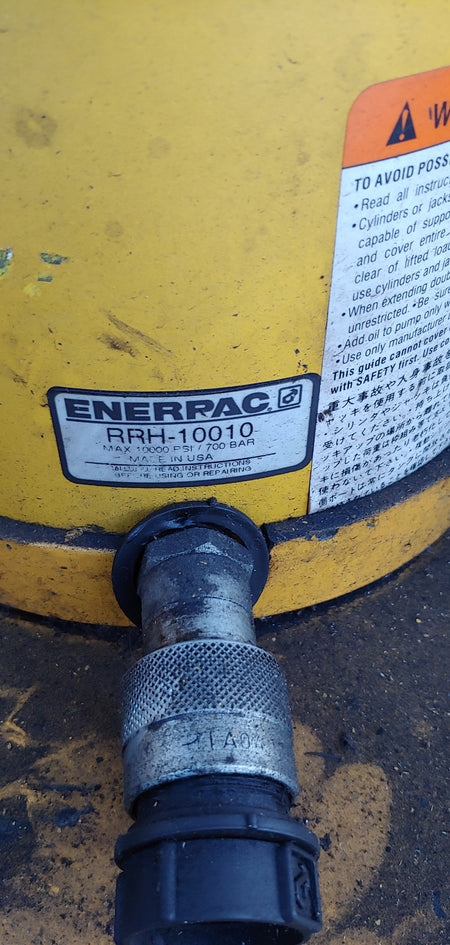

MFG: Enerpac
Model #: RRH-10010
Nominal Cylinder Capacity : 100 tons
Maximum Operating Pressure :10000 psi
Stroke : 10.13 inches
Advance Max. Cylinder Capacity : 103 tons
Retract Max. Cylinder Capacity : 68 tons
Advance Cylinder Effective Area : 20.63 sq. inch
Retract Cylinder Effective Area : 13.54 sq. inch
Advance Oil Capacity : 208.84 cu. inch
Retract Oil Capacity : 137.17 cu. inch
Collapsed Height - A : 18.13 inches
Extended Height - B : 28.25 inches
Outside Diameter - D : 8.38 inches
Cylinder Bore Diameter - E : 6.5 inches
Plunger Diameter - F : 5 inches
Cyl. Base to Advance Port - H : 1.5 inches
Cyl. Top to Return Port - I : 3.38 inches
Saddle Diameter - J : 4.97 inches
Saddle Protrusion From Plunger - K : 0.5 inches
Thread - O : 4 - 16 inches
Plunger Thread Length - P : 1.00 inches
Bolt Circle - U : 7 inches
Thread - V : 5/8 - 11 inches
Collar Thread - W : 8 3/8 - 12 inches
Collar Thread Length - X : 2.38 inches
Center Hole Diameter - Y : 3.13 inches
Thread Depth - Z : 0.75 inches
RCH Series Options
HP - 10016 Heat treated threaded hollow saddle
Saddle Dimension A : 4.97 inches
Saddle Dimension B : 2 1/2 - 8 inches
Saddle Dimension C : 0.51 inches
Weight : 235 lbs.
Condition: Used in good working condition
Location: La Broquerie, MB
