ITT Standard Tube & Shell Heat Exchanger - BCF - SN503006060003

ITT Standard Tube & Shell Heat Exchanger - BCF - SN503006060003

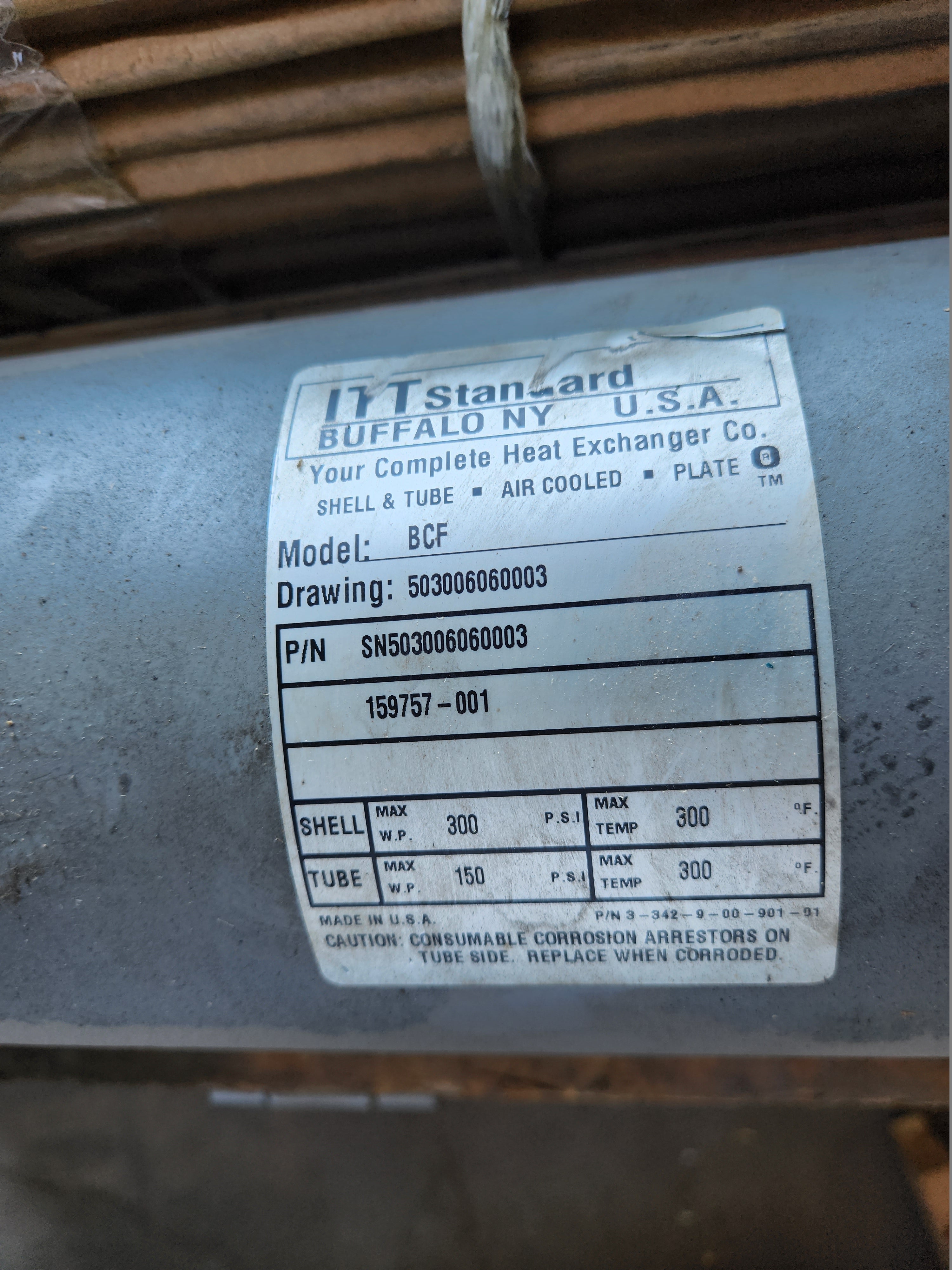

Model: BCF

Serial #: 159757-001

MODEL NUMBER

ITT Part Number: 5-030-06-060-003
Number of Passes: 2
Baffle Spacing: Narrow

Connections: 2" NPT

Construction & Materials:
Tubes: Copper
Tubesheet: Brass
Shell: Brass
Baffles: Brass
End Bonnets: Cast Iron
Mounting Brackets: Steel

Ratings:
Maximum Shell Pressure: 300 PSI
Maximum Tube Pressure: 150 PSI
Maximum Temperature: 300 F

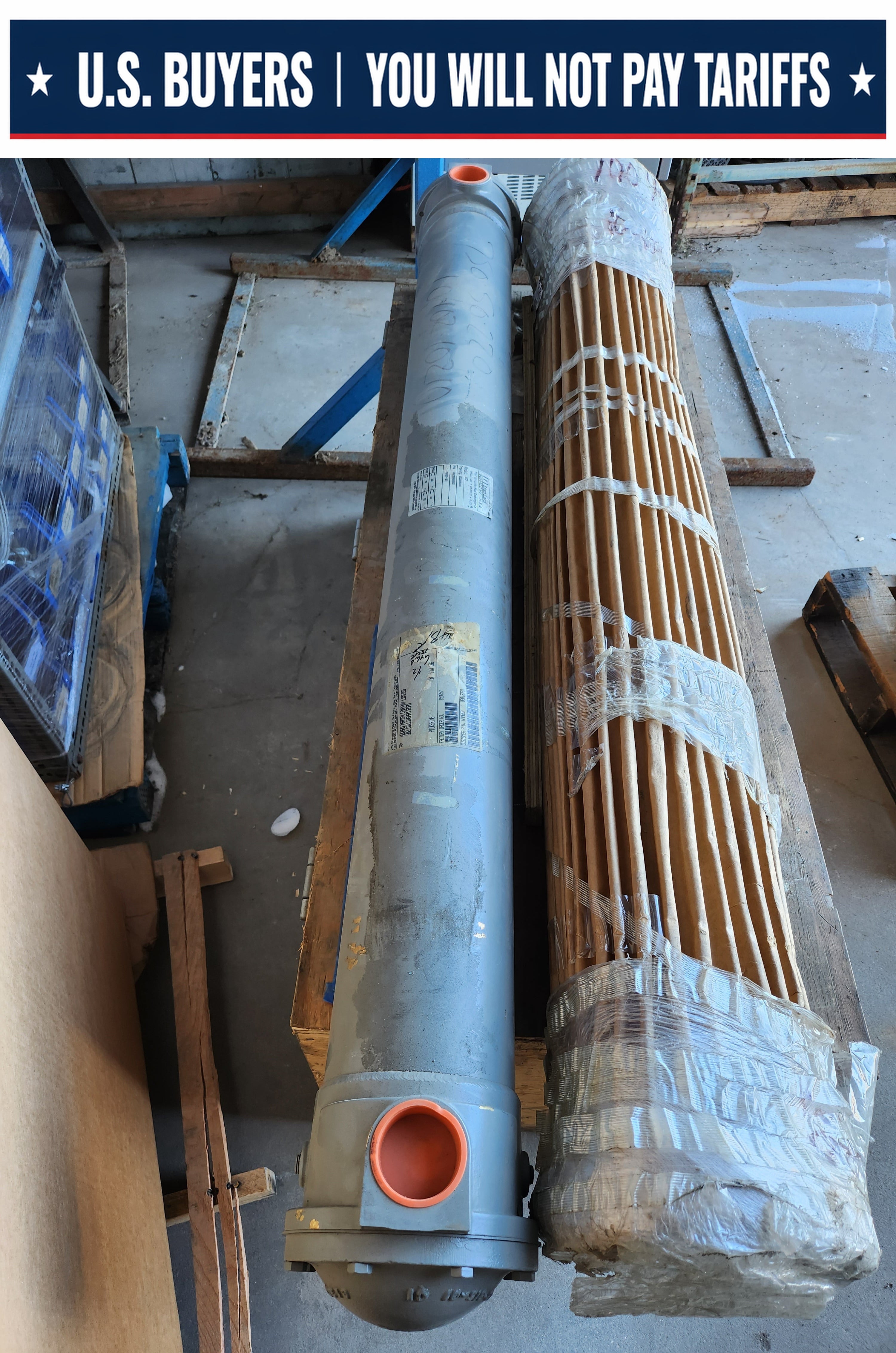

Condition: New never installed, a few dings and scratches on outside of shell from handling.

Location: La Broquerie, MB
