Ferranti-Packard 9750/13000 KVA ONAN/ONAF Transformer 60 Hz
Regular price
$190,000.00 CAD
Ferranti-Packard oil-filled transformer, single phase, 60 Hz.

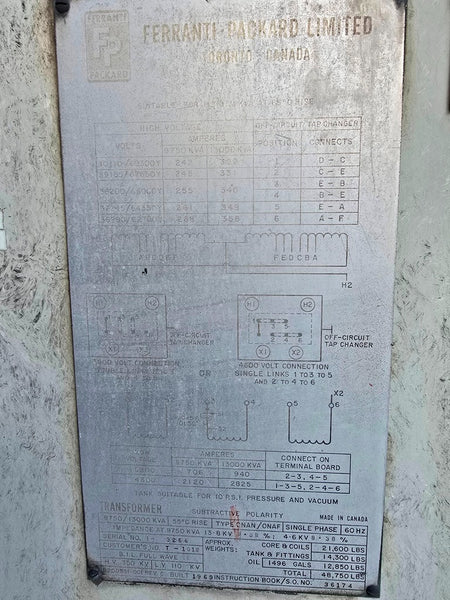

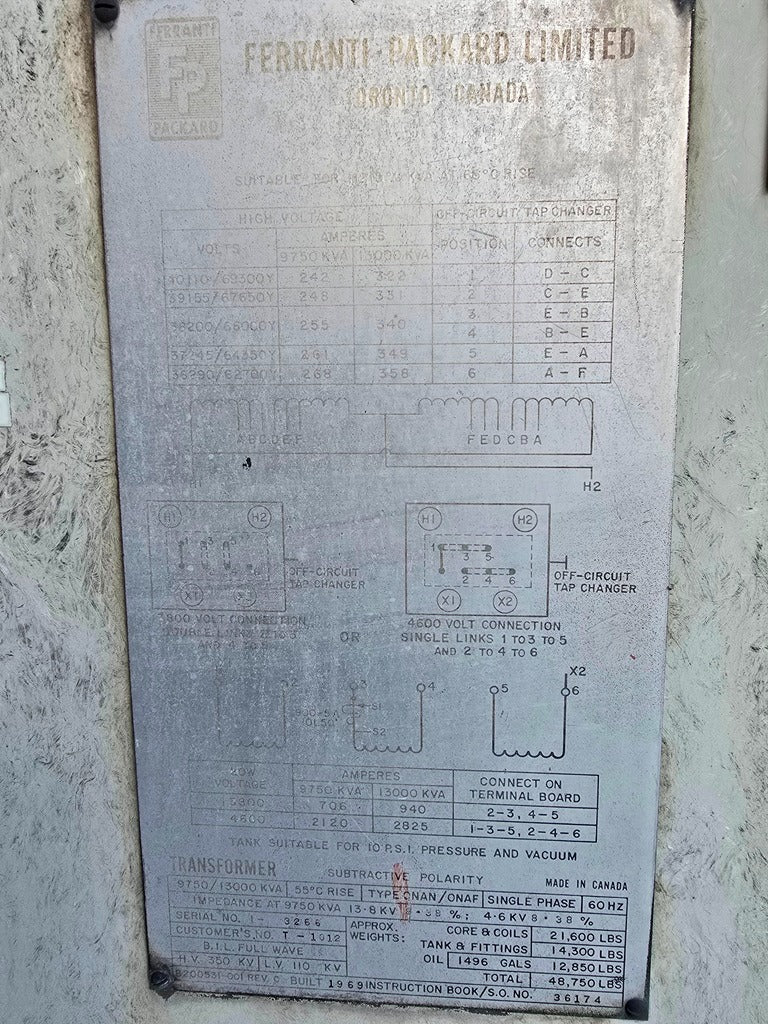

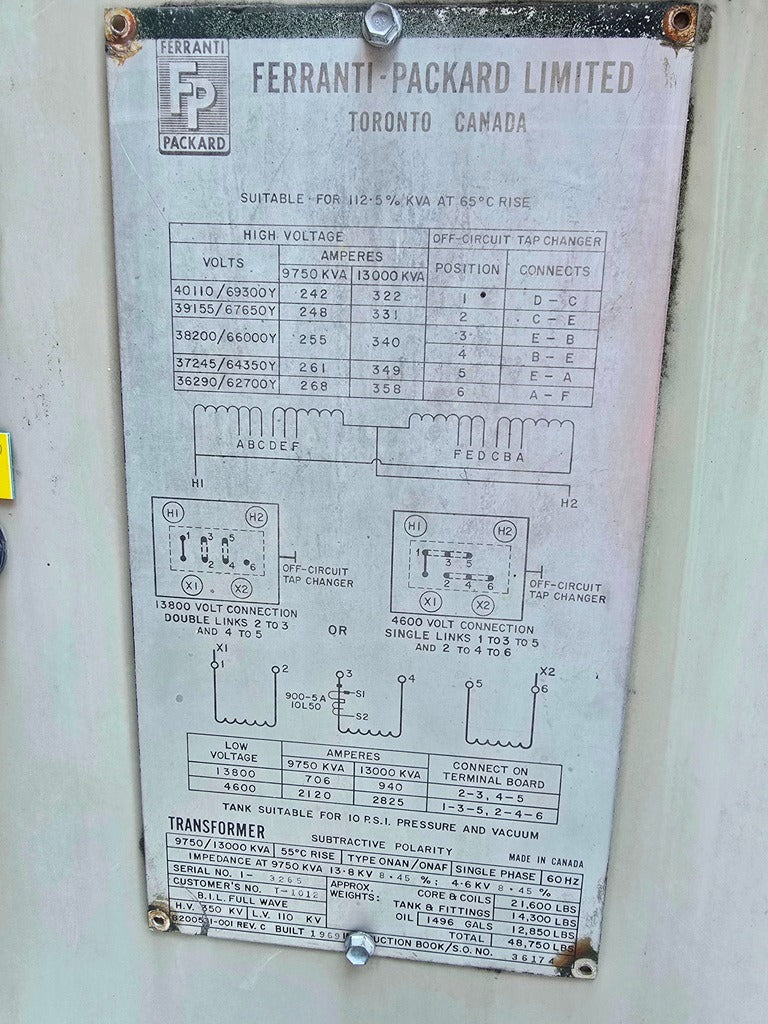

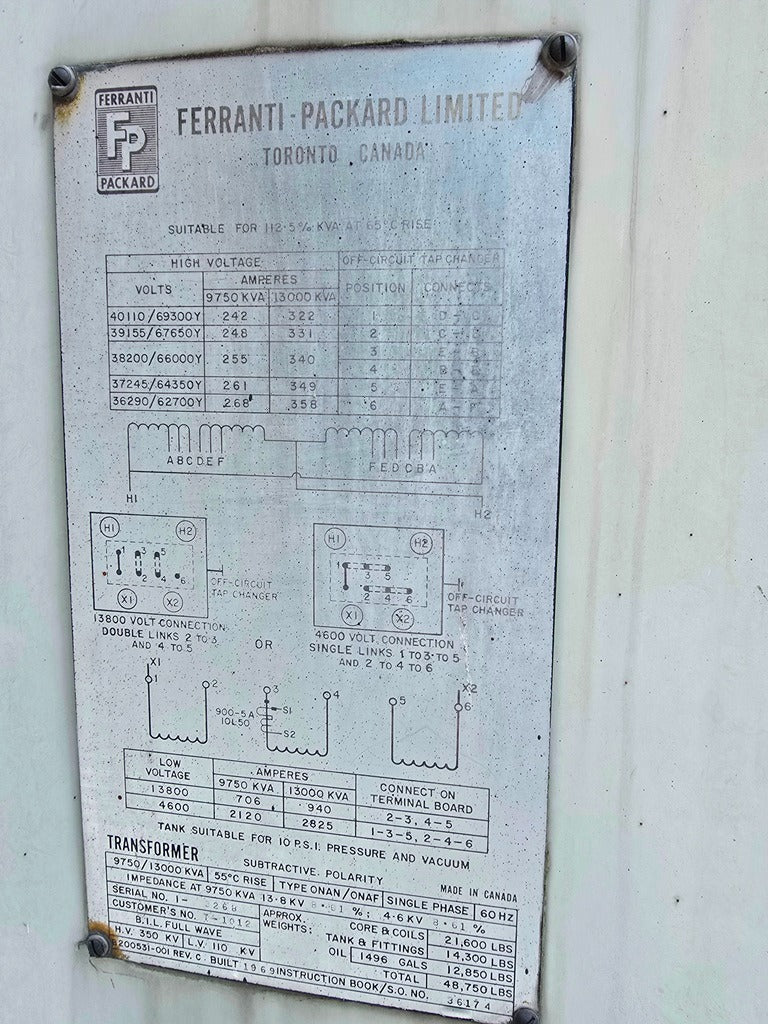

At 55 C temperature rise, the plate lists 9750 kVA ONAN / 13000 kVA ONAF. The plate permits 112.5% of these ratings at 65 C rise.
Primary Voltage taps (winding / wye system):
- 40110 V / 69300Y V
- 39155 V / 67650Y V
- 38200 V / 66000Y V
- 37245 V / 64350Y V
- 36290 V / 62700Y V
Secondary Voltage: 13800 V or 4600 V. These are nameplate connection options; the currently selected tap and low-voltage connection are not established.

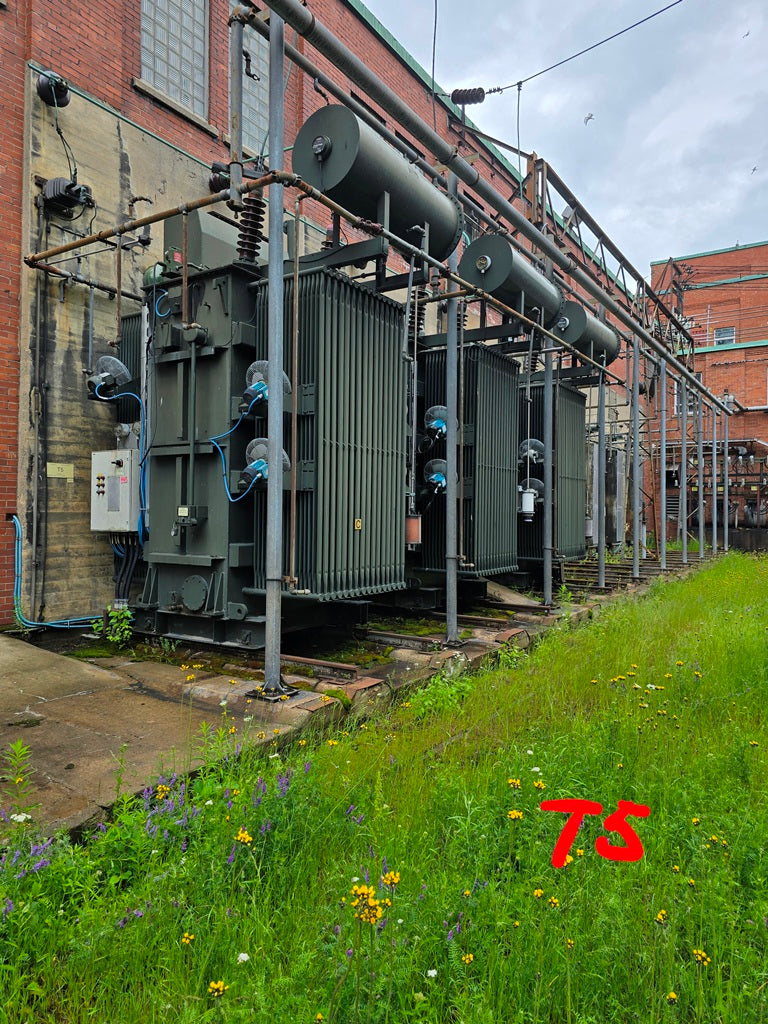

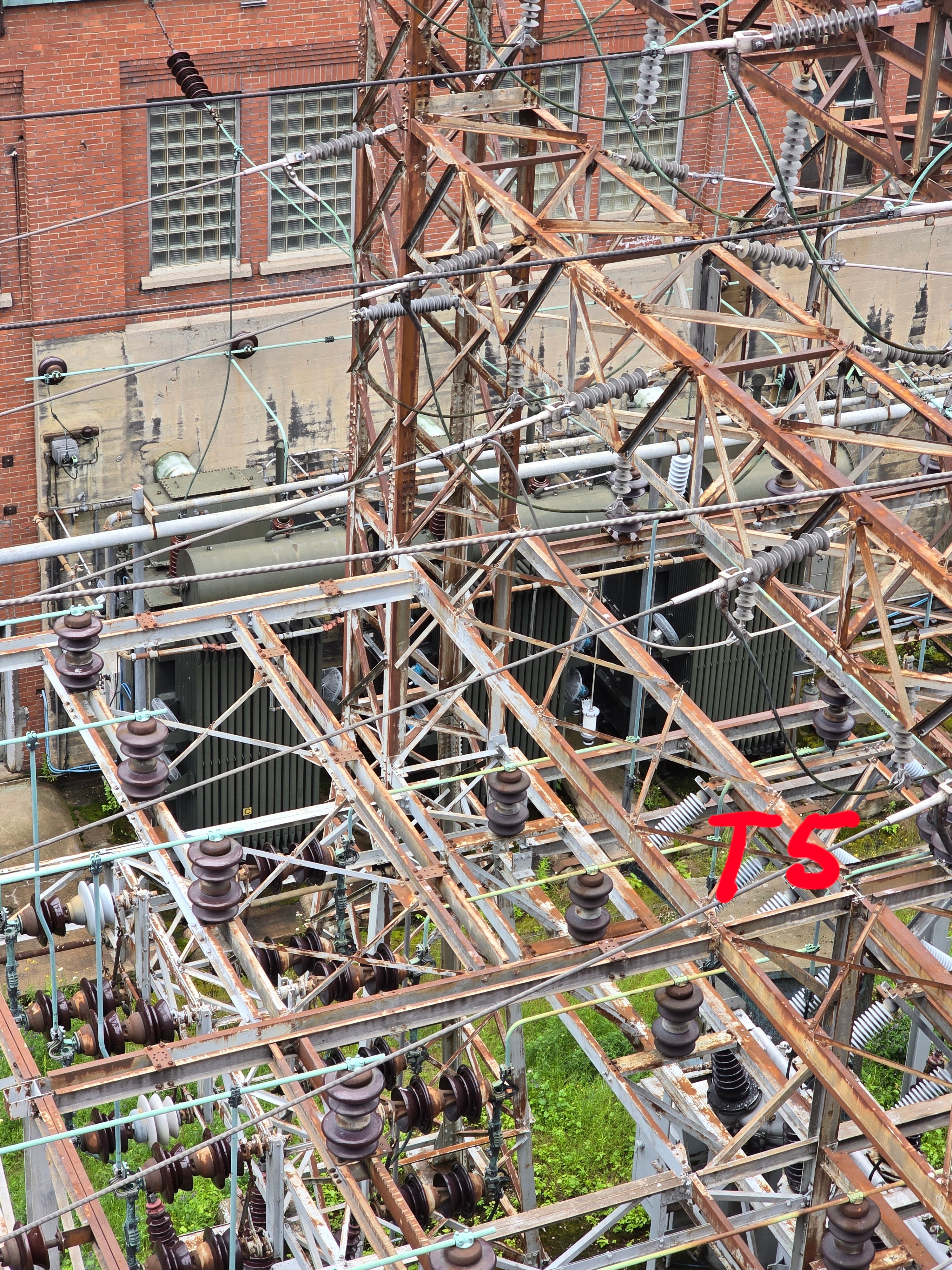

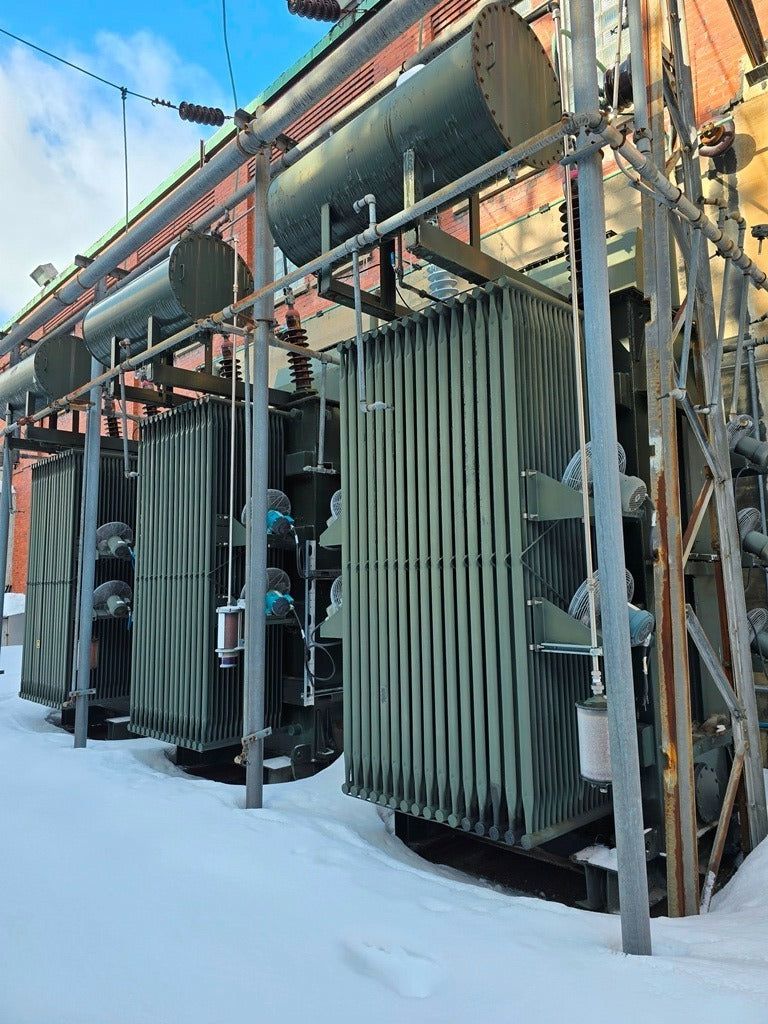

Approximate total weight recorded: 48,750 lb including core, coils, tank, fittings and oil. Condition: Used, installed outdoors with piping and electrical connections. Shipping requires a custom quote.
