Federal Pioneer Single-Phase Oil-Filled Transformer, 38.105 kV HV

Only 3 left
43400.0 lb -  Freight shipping or pickup by appointment
$150,000.00 CAD
This item requires freight shipping or pickup by appointment.
Contact us before ordering if you need a freight quote.
Equipment location: Baie-Comeau, Quebec, Canada. Pickup is by appointment only; contact us to confirm arrangements. No walk-in visits.

Federal Pioneer single-phase oil-filled transformer, manufactured in Canada in 1986, 60 Hz. Serial / instruction-book number: T60687-4.

  • Primary Voltage: 38105 V
  • Secondary Voltage: 13800 V or 4600 V
  • Cooling: ONAN/ONAF

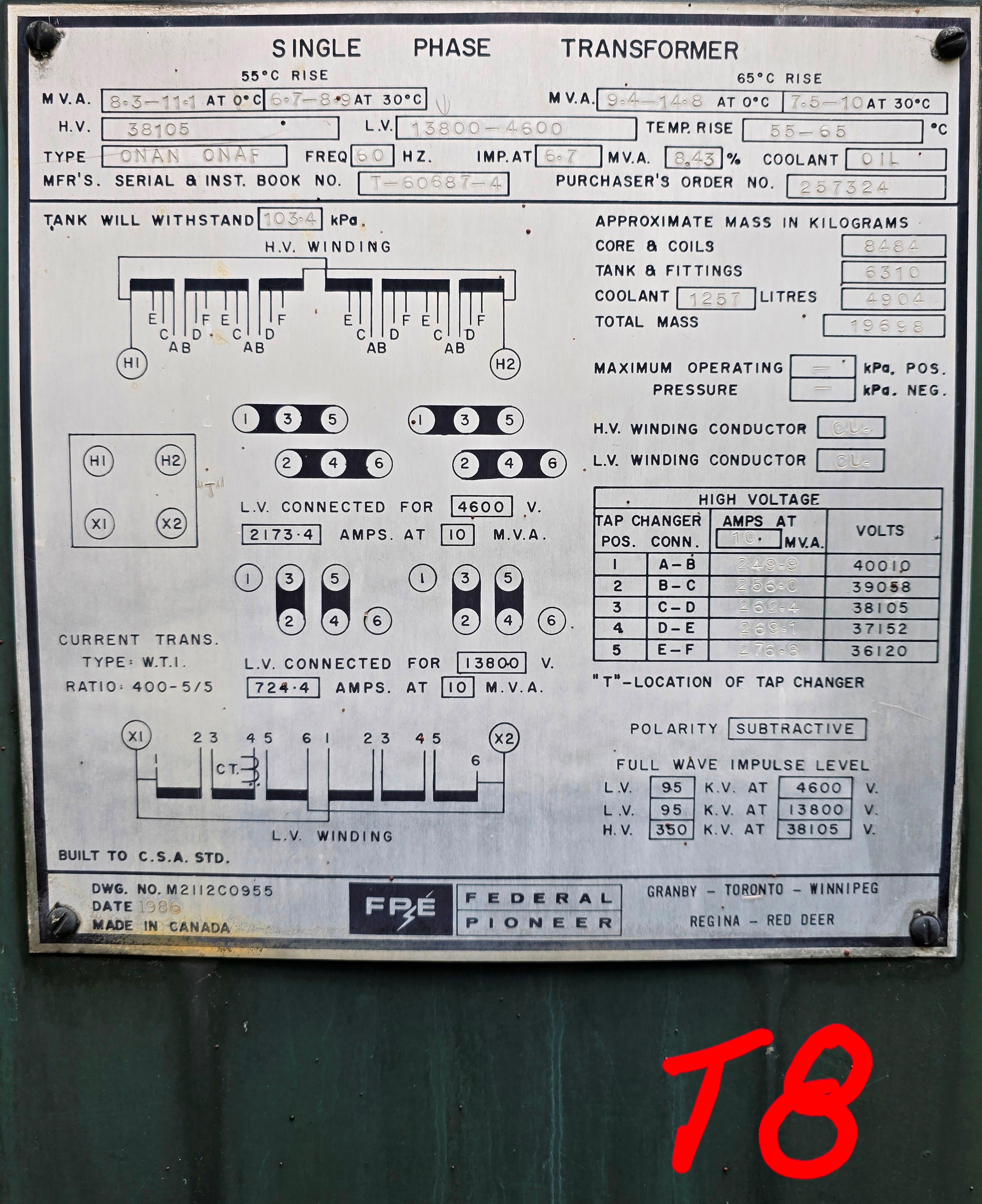

Nameplate capacities, in ONAN/ONAF order:

  • 55 C rise, 0 C ambient: 8.3/11.1 MVA
  • 55 C rise, 30 C ambient: 6.7/8.9 MVA
  • 65 C rise, 0 C ambient: 9.4/14.8 MVA
  • 65 C rise, 30 C ambient: 7.5/10 MVA

The 10 MVA value is one conditional rating, not the rating for every cooling or ambient condition. The currently connected low-voltage option is not established.

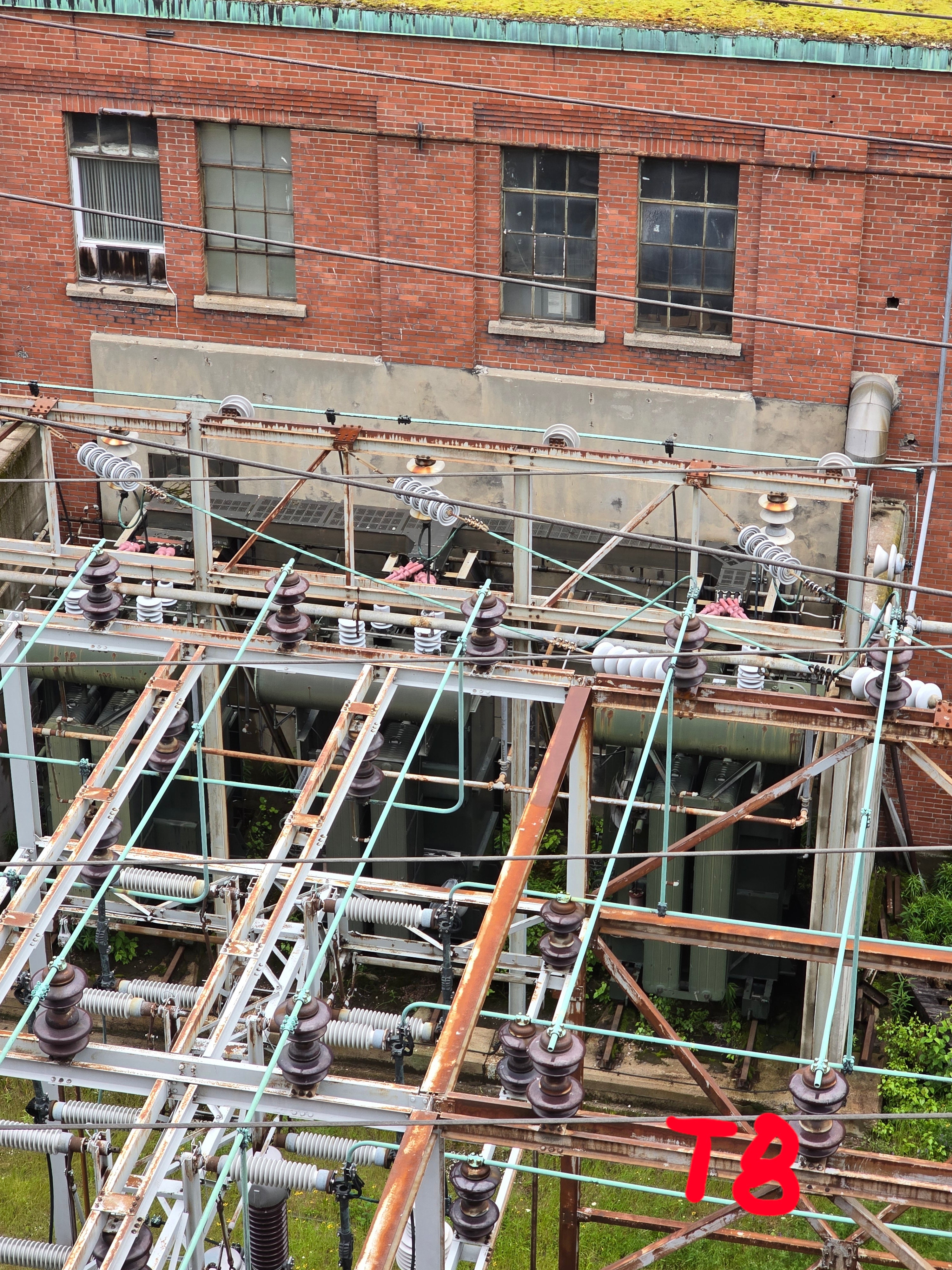

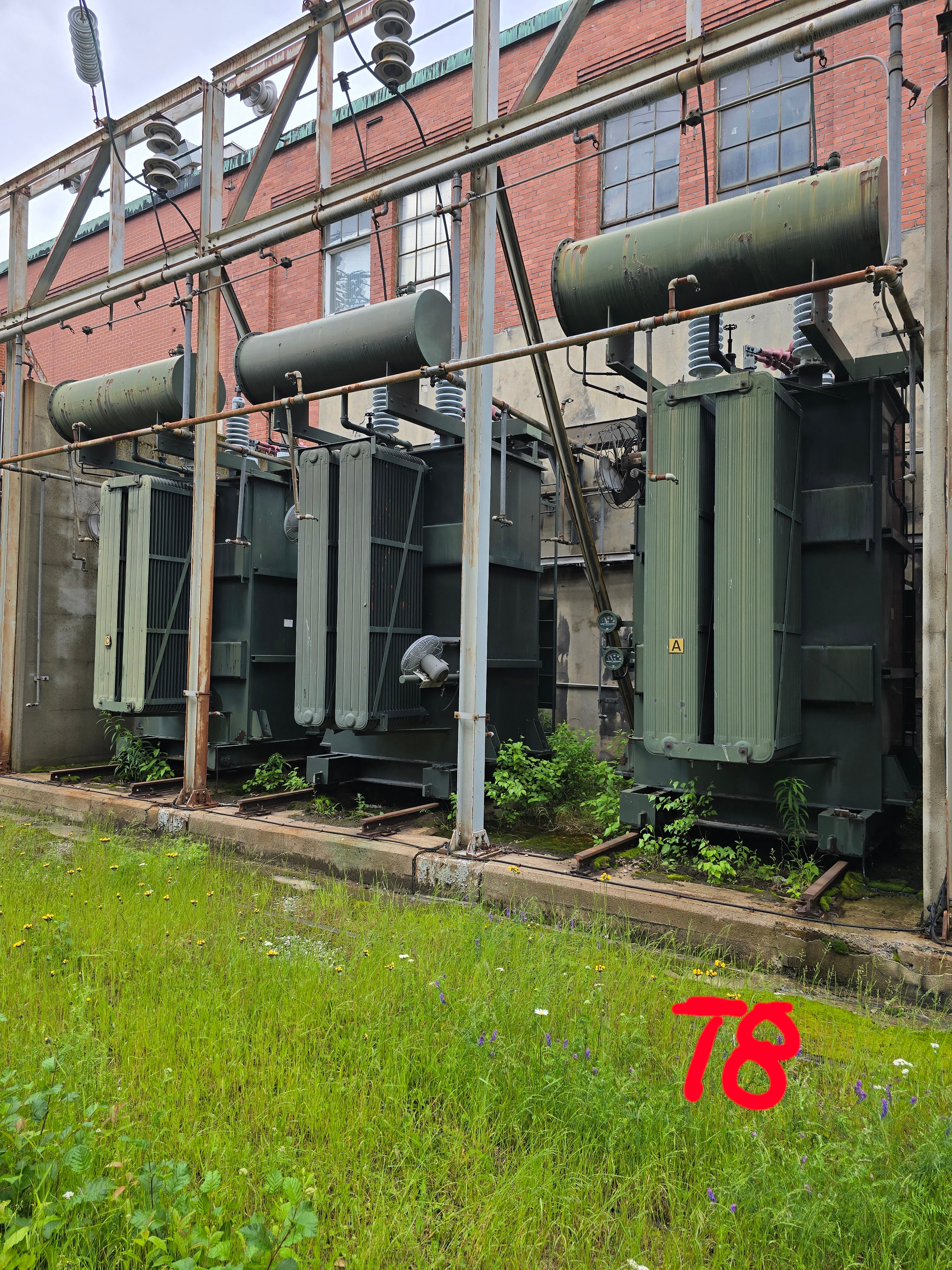

Condition: Used, installed outdoors with visible weathering.
