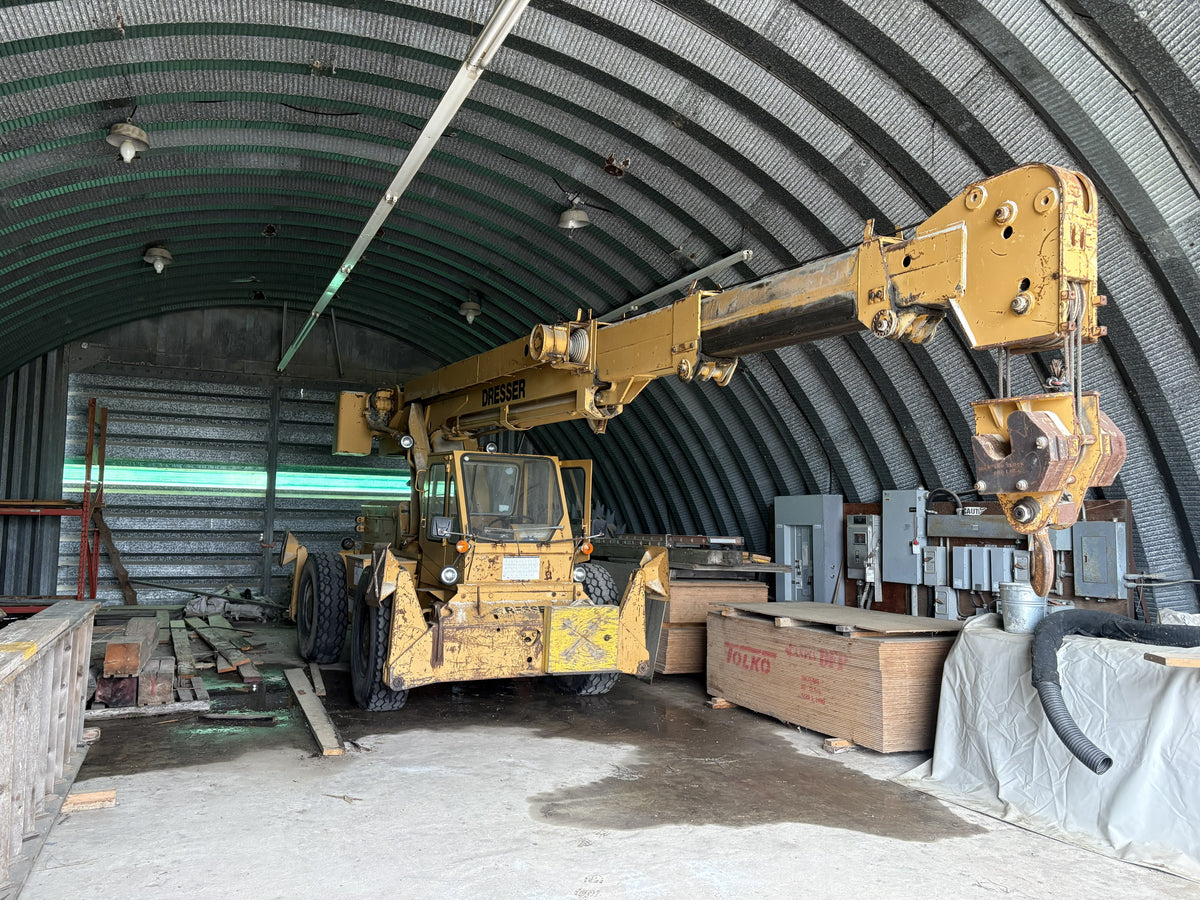

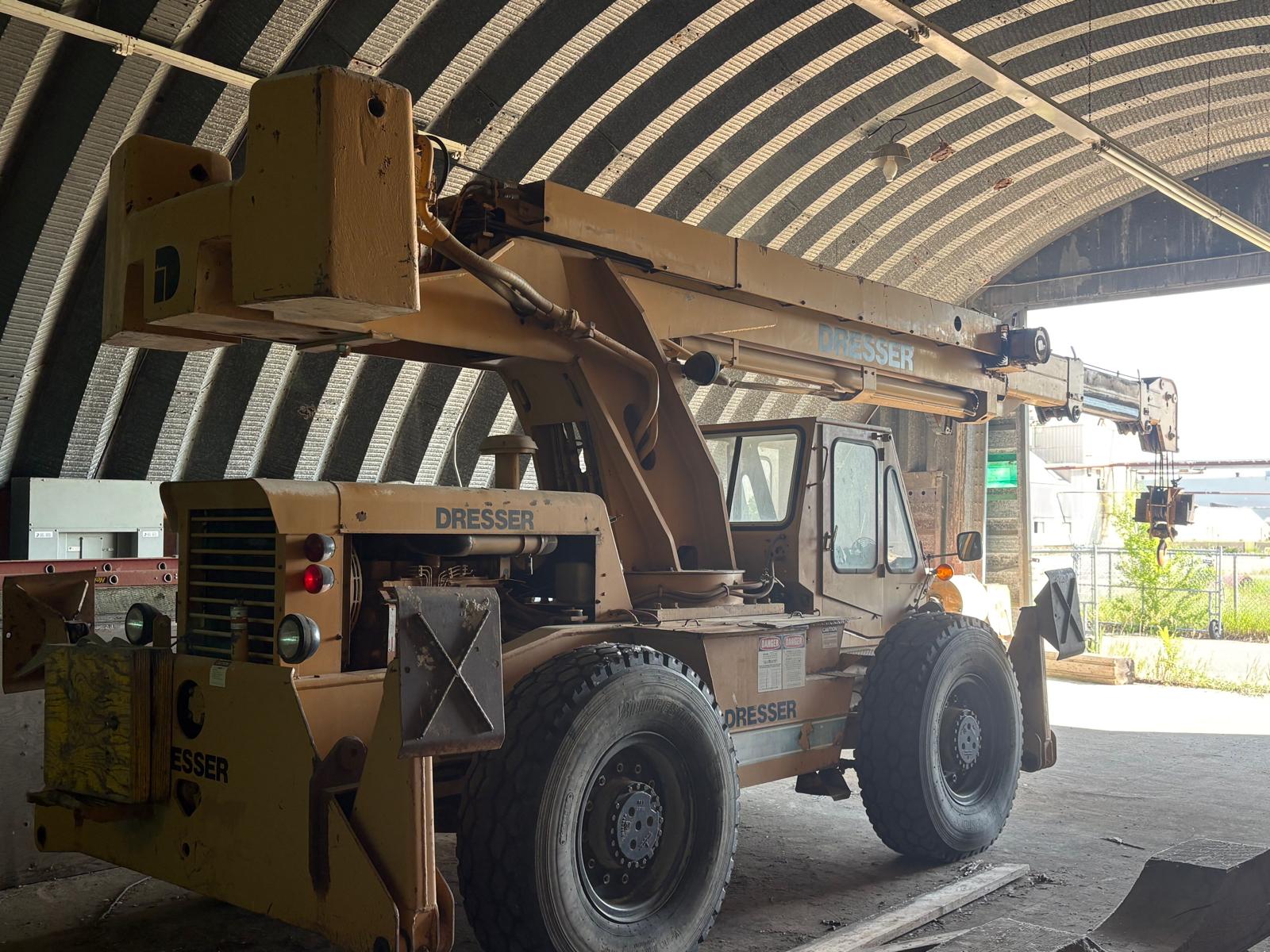

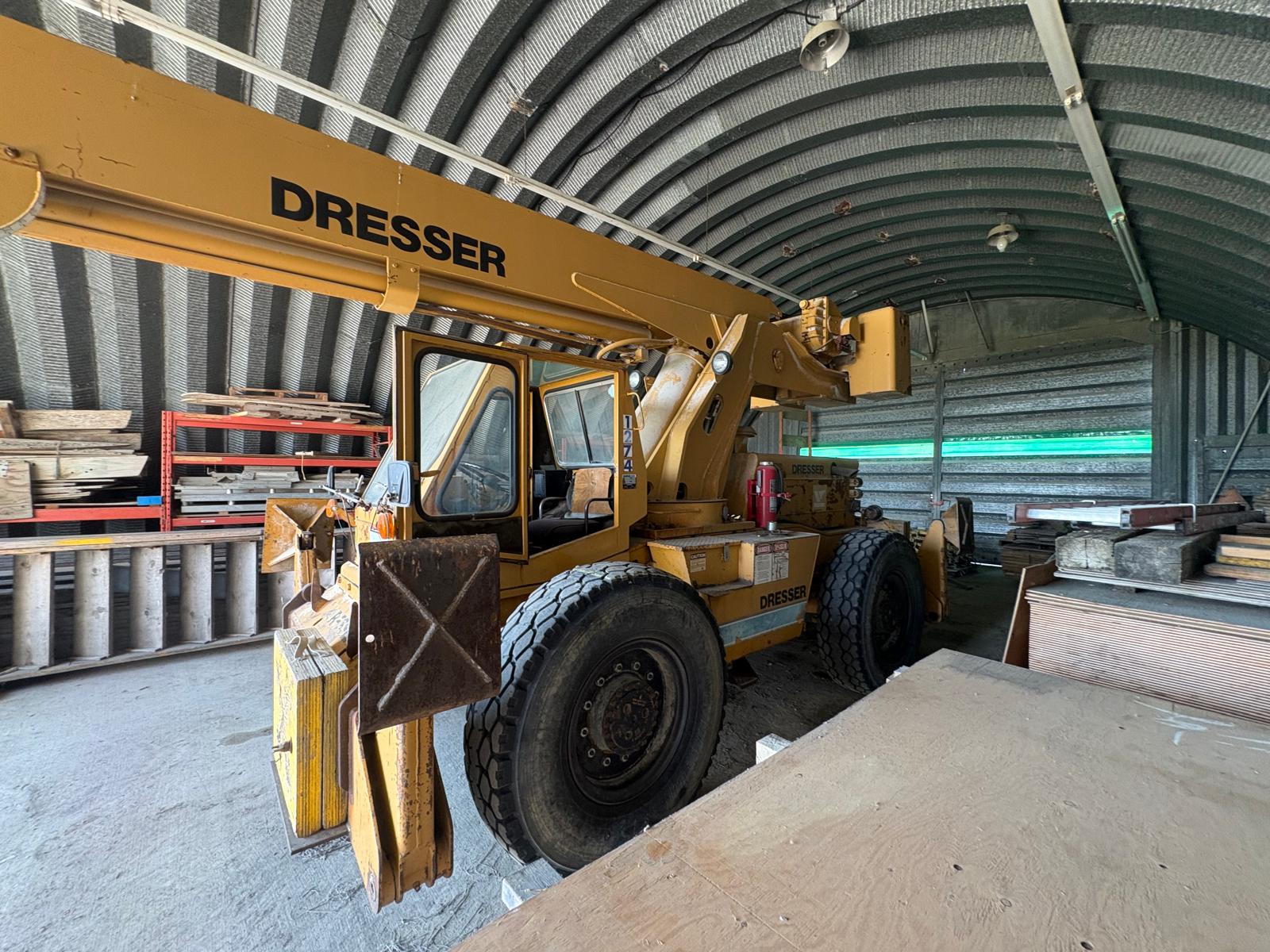

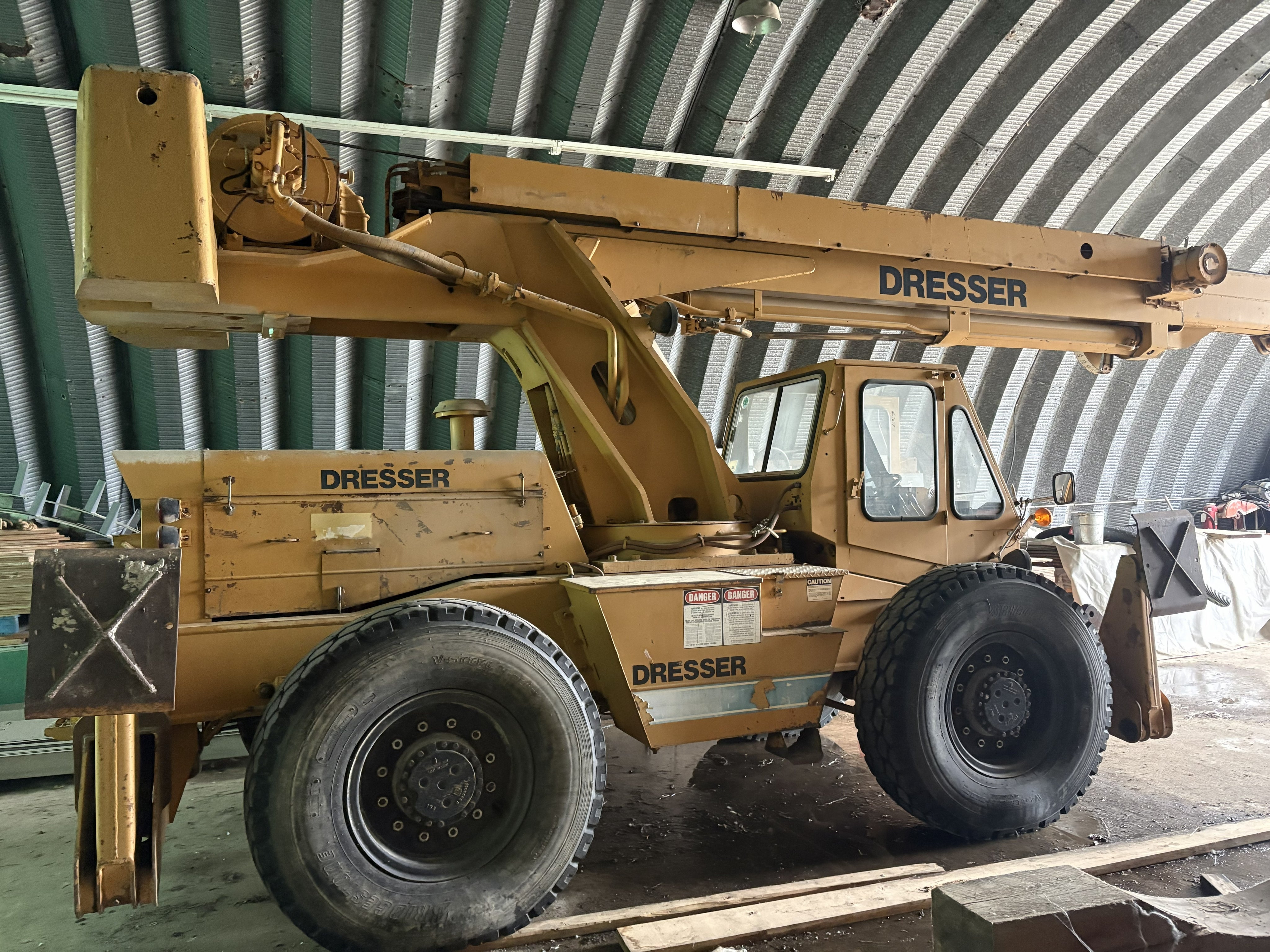

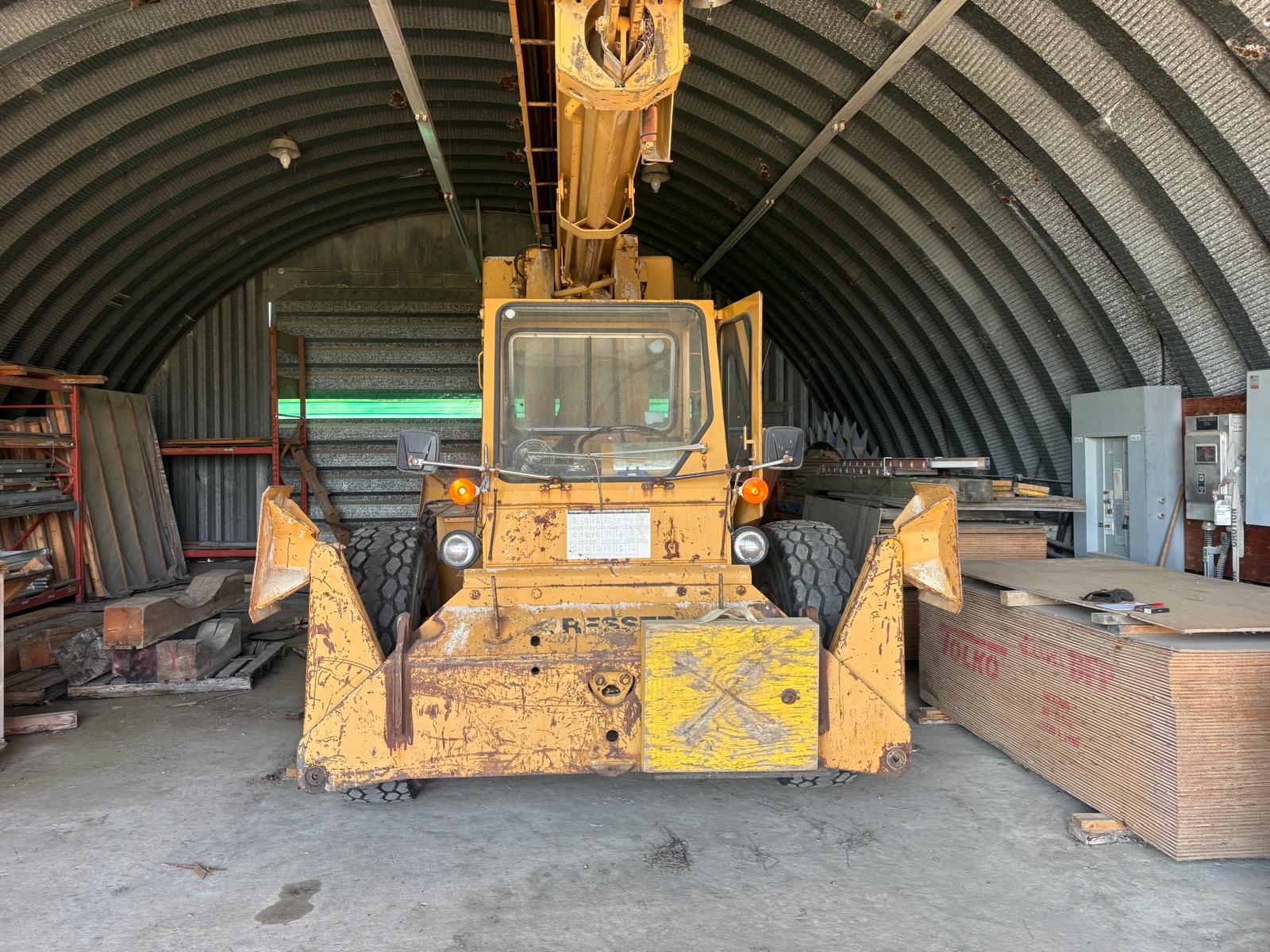

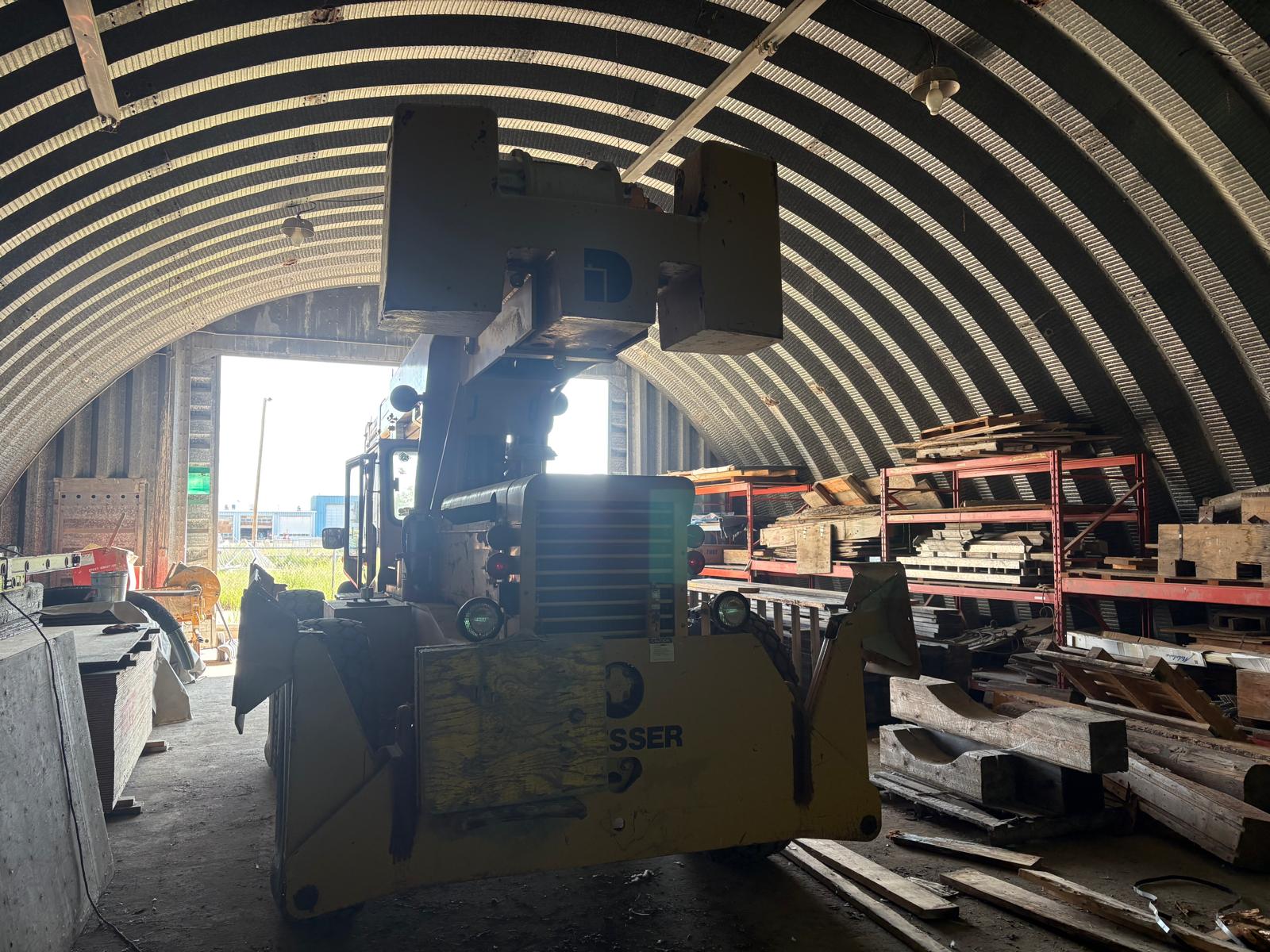

Dresser - Model 150FA Mobile Crane unit

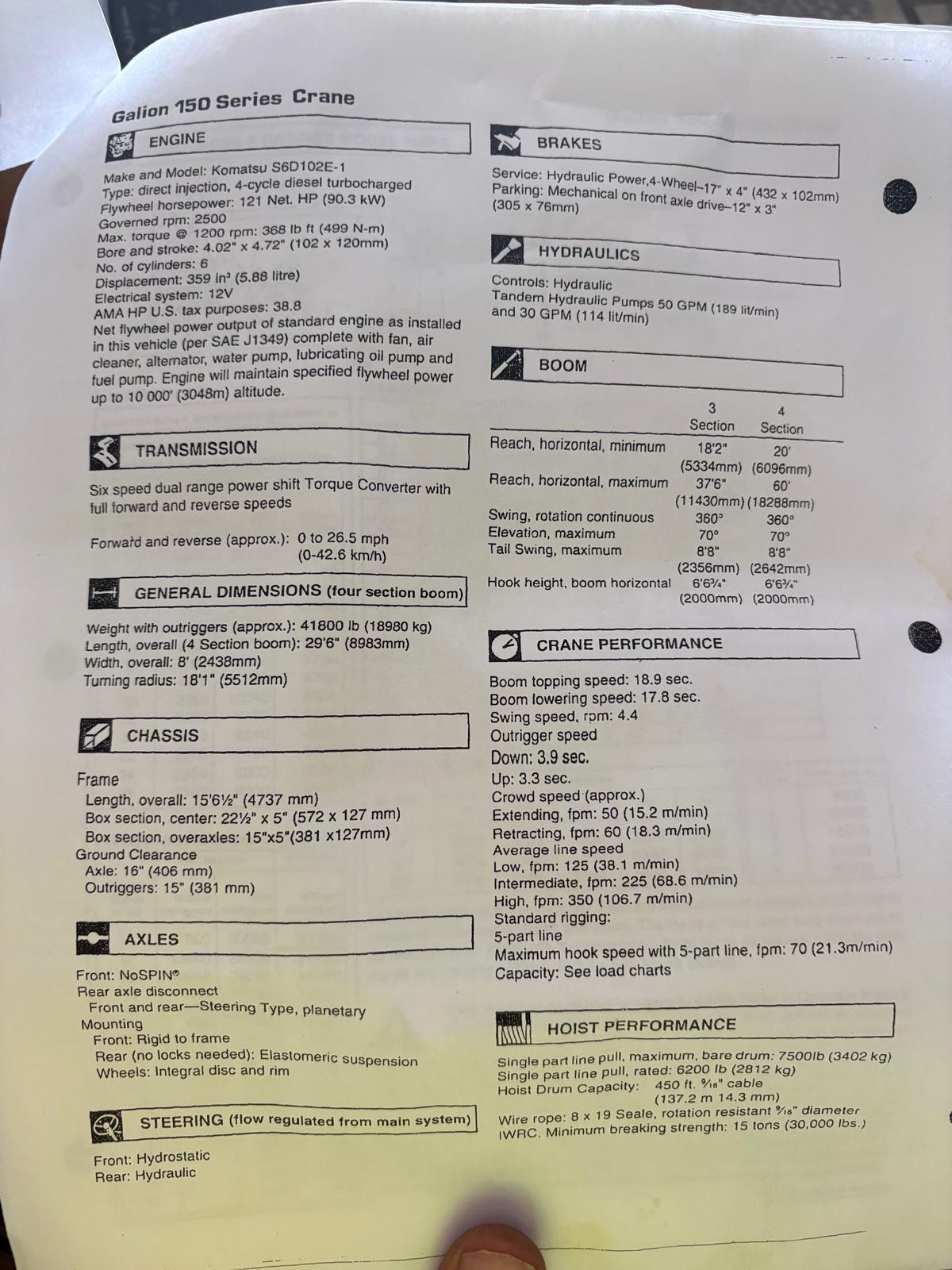

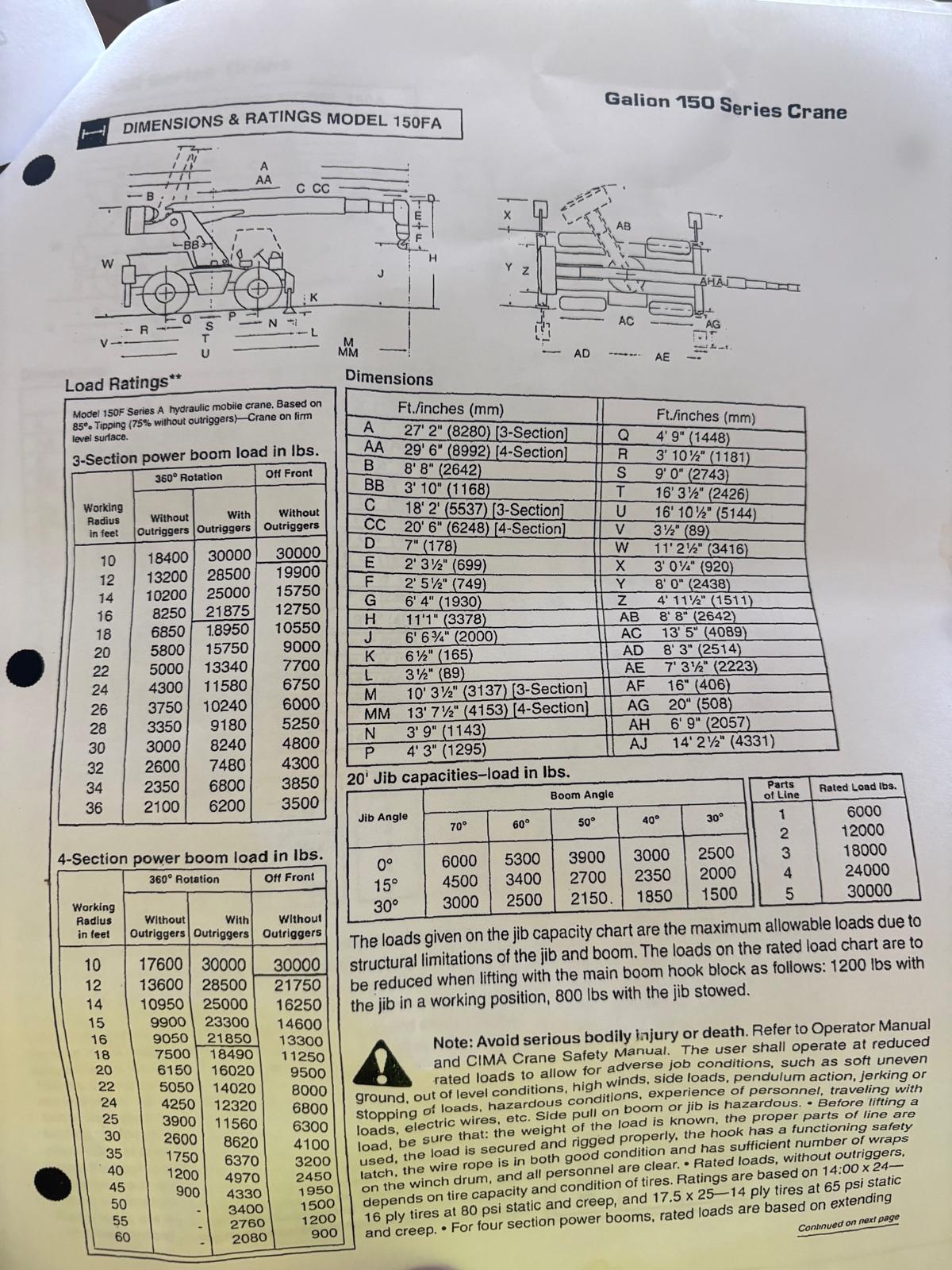

Engine (Komatsu S6D102E-1) Type: Direct injection, 4-cycle diesel, turbocharged (6 cylinders) Power: 121" HP" (90.3" kW" ) net flywheel horsepower @ 2500" RPM" Torque: 368" lb-ft" (499" N"⋅"m" ) @ 1200" RPM" Displacement: 359〖" in" 〗^3 (5.88" L" ) Electrical: 12"V" system Altitude Capability: Maintains specified power up to 10,000" ft" (3048" m" ) Transmission & Travel Type: 6-speed, dual-range power shift torque converter (full forward/reverse) Speed: 0 to 26.5" mph" (0 to 42.6" km/h" ) Chassis, Steering, & Suspension Overall Weight (with outriggers): Approx. 41,800" lbs" (18,980" kg" ) Overall Dimensions (4-Section Boom): 29'" 6\"" long x 8'" 0\"" wide Turning Radius: 18'" 1\"" (5512" mm" ) Ground Clearance: Axle: 16" (406" mm" ) | Outriggers: 15" (381" mm" ) Steering: Hydrostatic (front) and Hydraulic (rear) Axles: Front NoSPIN, rear axle disconnect; planetary steering-type front/rear ⚙️ Systems & Performance Brakes & Hydraulics Service Brakes: Hydraulic power, 4-wheel (17"×4") Parking Brake: Mechanical on front axle drive (12"×3") Hydraulic Pumps: Tandem pumps delivering 50" GPM" (189" L/min" ) and 30" GPM" (114" L/min" ) Boom Specifications Feature 3-Section Boom 4-Section Boom Min. Horizontal Reach 18'" 2\"" (5334" mm" ) 20'" 0\"" (6096" mm" ) Max. Horizontal Reach 37'" 6\"" (11,430" mm" ) 60'" 0\"" (18,288" mm" ) Swing Rotation 360^∘ continuous 360^∘ continuous Max. Elevation 70^∘ 70^∘ Max. Tail Swing 8'" 8\"" (2356" mm" ) 8'" 8\"" (2642" mm" ) Operating Speeds Boom Topping / Lowering: 18.9" sec" / 17.8" sec" Swing Speed: 4.4" RPM" Outriggers (Down / Up): 3.9" sec" / 3.3" sec" Crowd Speed (Extending / Retracting): 50" FPM" / 60" FPM" Line Speed (Low / Mid / High): 125" FPM" / 225" FPM" / 350" FPM" Load Ratings & Hoist Performance Hoist Capacity Max. Line Pull (Bare Drum): 7,500" lbs" (3,402" kg" ) Rated Line Pull: 6,200" lbs" (2,812" kg" ) Wire Rope: 9/16" diameter (14.3" mm" ), 8×19 Seale, rotation-resistant (minimum breaking strength of 15" tons" ) Drum Capacity: 450" ft" (137.2" m" ) Load Limits (Based on Parts of Line) 1 Part: 6,000" lbs" 2 Parts: 12,000" lbs" 3 Parts: 18,000" lbs" 4 Parts: 24,000" lbs" 5 Parts: 30,000" lbs" (Max hook speed: 70" FPM" ) Power Boom Load Capacity Examples (360° Rotation) Below are highlights of the capacity variations depending on the use of outriggers: 3-Section Boom: At 10'" radius" : 30,000" lbs" (With Outriggers) | 18,400" lbs" (Without Outriggers) At 36'" radius" : 6,200" lbs" (With Outriggers) | 2,100" lbs" (Without Outriggers) 4-Section Boom: At 10'" radius" : 30,000" lbs" (With Outriggers) | 17,600" lbs" (Without Outriggers) At 60'" radius" : 2,080" lbs" (With Outriggers) | Not rated (Without Outriggers)
