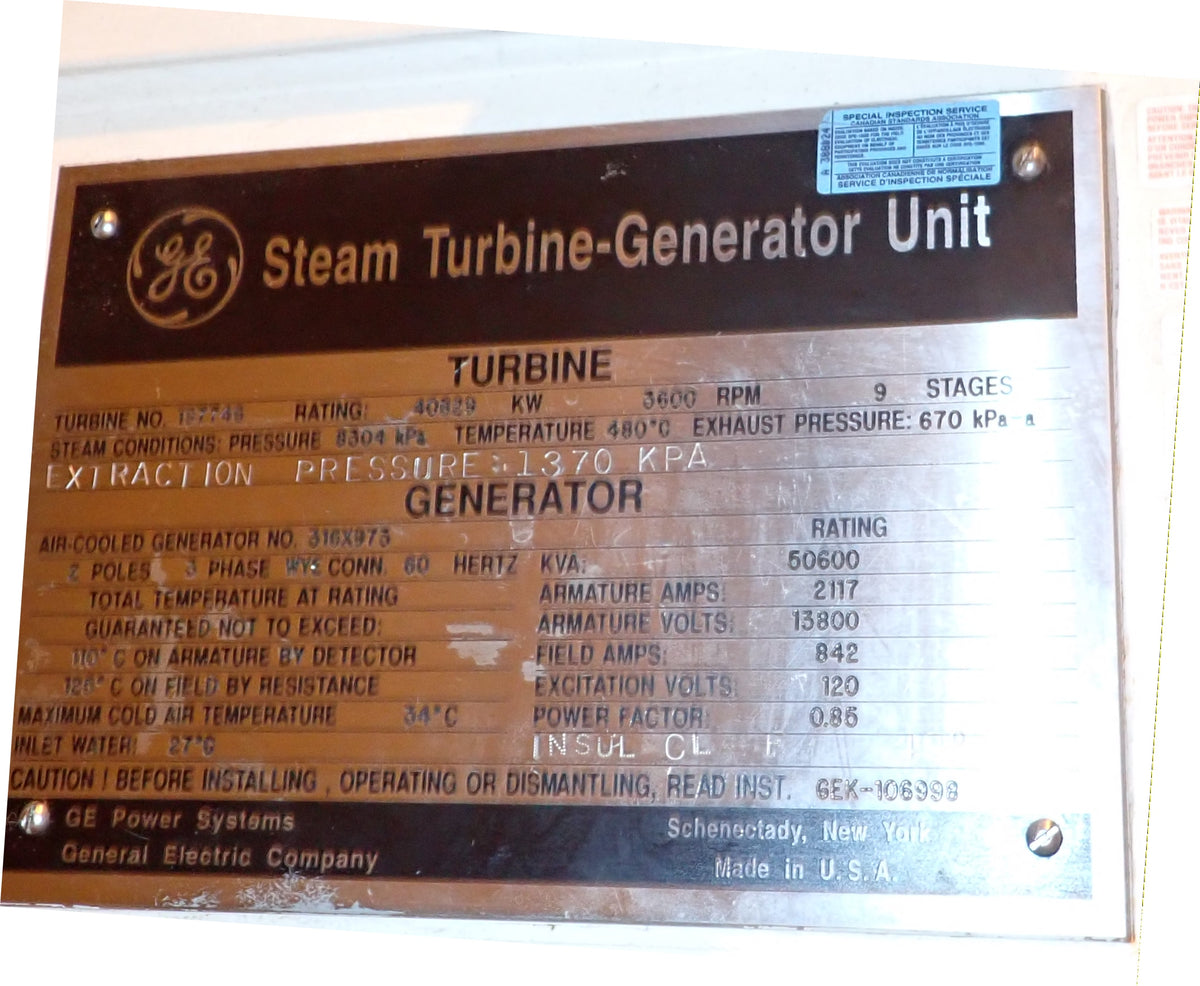

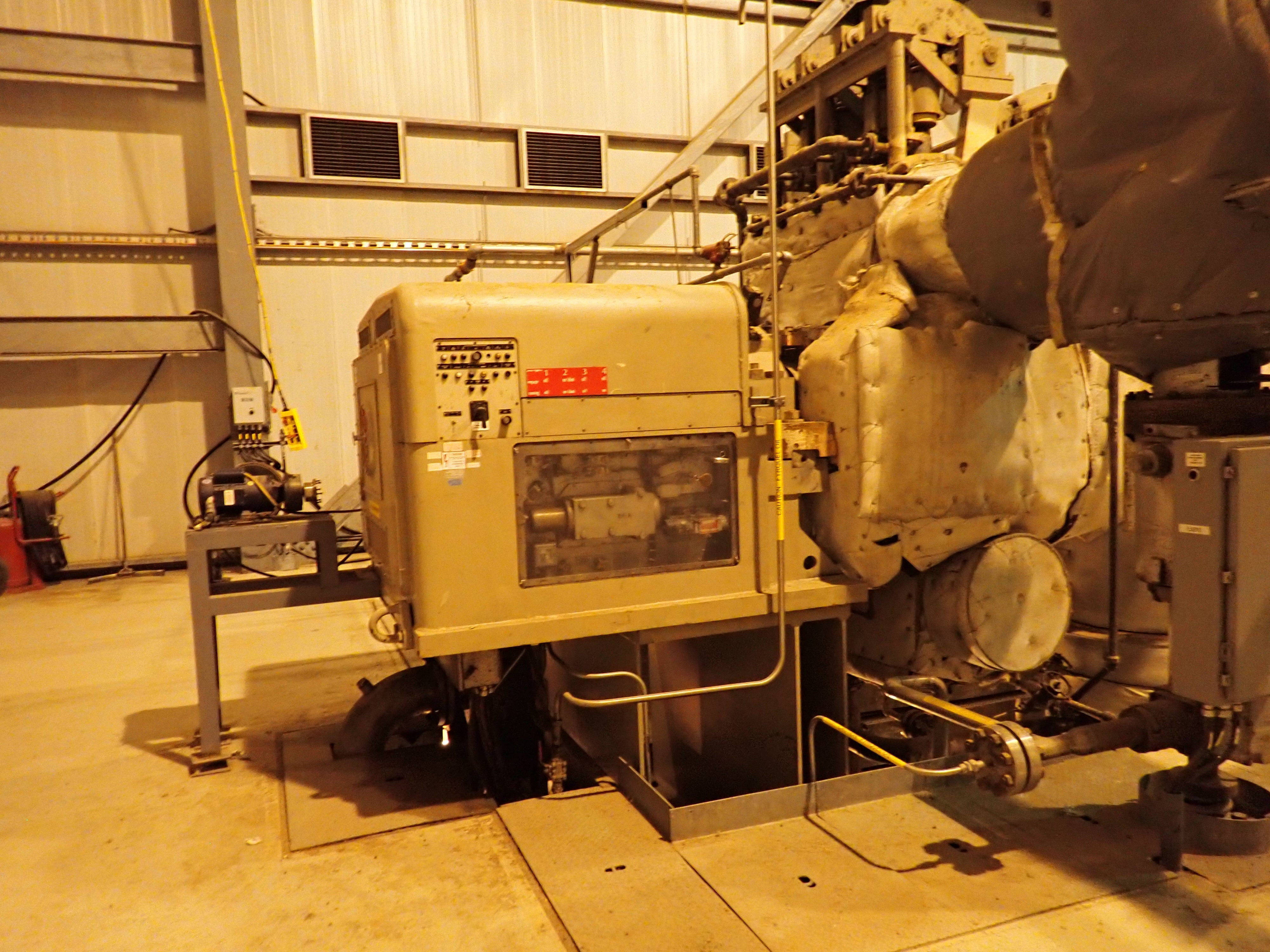

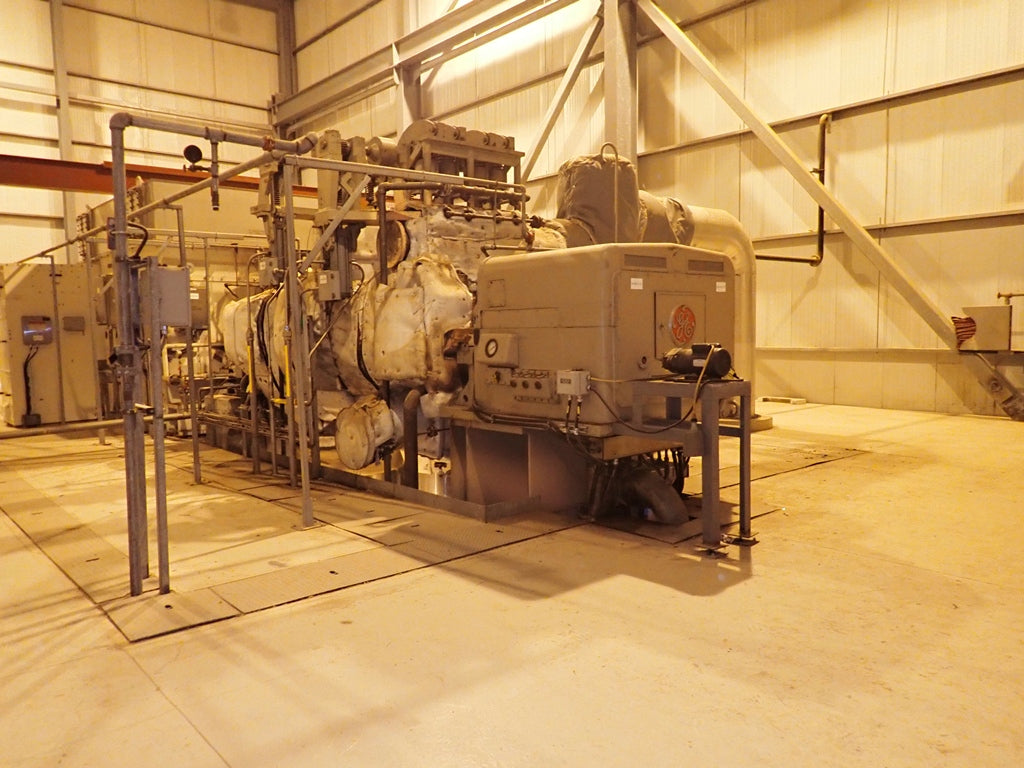

GE Steam Turbine-Generator Unit, axial single extraction backpressure turbine generator, 40.8 MW capacity, 3600 RPM, 9 stages.
Generator rating 50,600 KVA, 2 poles, 3 phase, 60 Hz.
Armature amps 2117, armature volts 13,800, field amps 842, excitation volts 120, power factor 0.85.

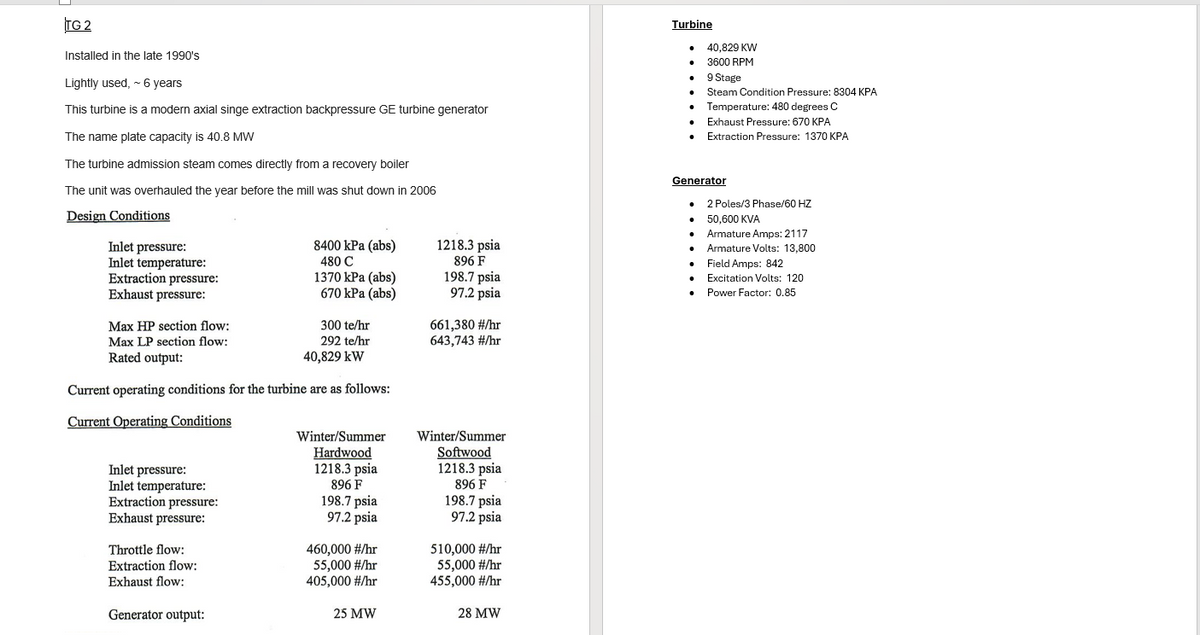

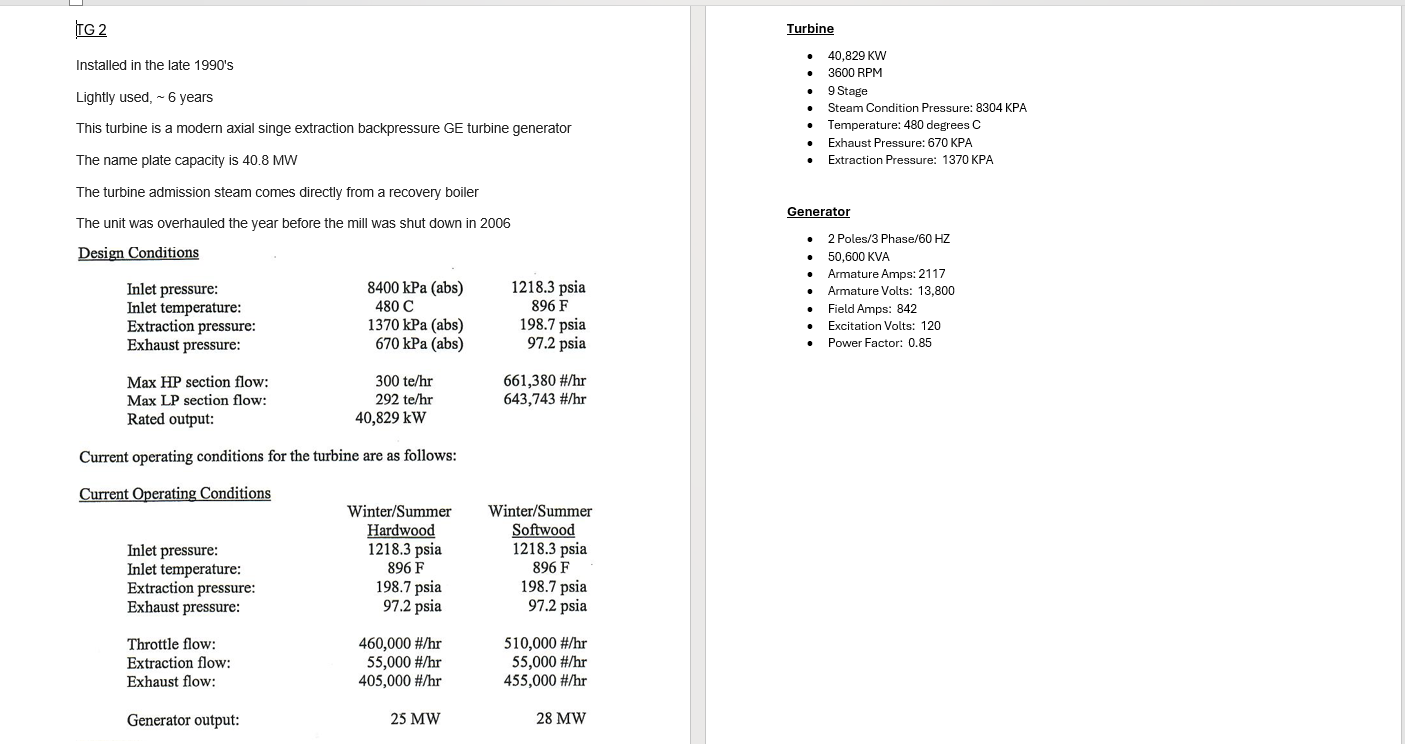

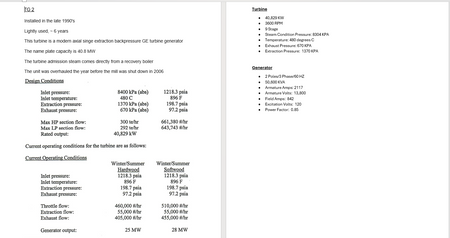

Steam conditions: pressure 8304 kPa, temperature 480°C, exhaust pressure 670 kPa, extraction pressure 1370 kPa.
Installed late 1990s, lightly used (~6 years), overhauled in 2005.
Made in USA by General Electric Company.
