Fisher Control Valve 1051 Actuator with differential pressure gauge

Only 1 left
44.09 lb โ€“ Eligible for shipping
$2,121.00 CAD
๐Ÿ“ฆ Shipping available across Canada, U.S., and Internationally for all items under 66lbs.
๐Ÿงพ Shipping options shown at checkout.
๐Ÿช Local pickup available in La Broquerie, MB โ€” usually ready in 2โ€“4 days.

Need more options?

Search the ETI Industrial Marketplace for additional surplus equipment, including related examples like large industrial electric motors.

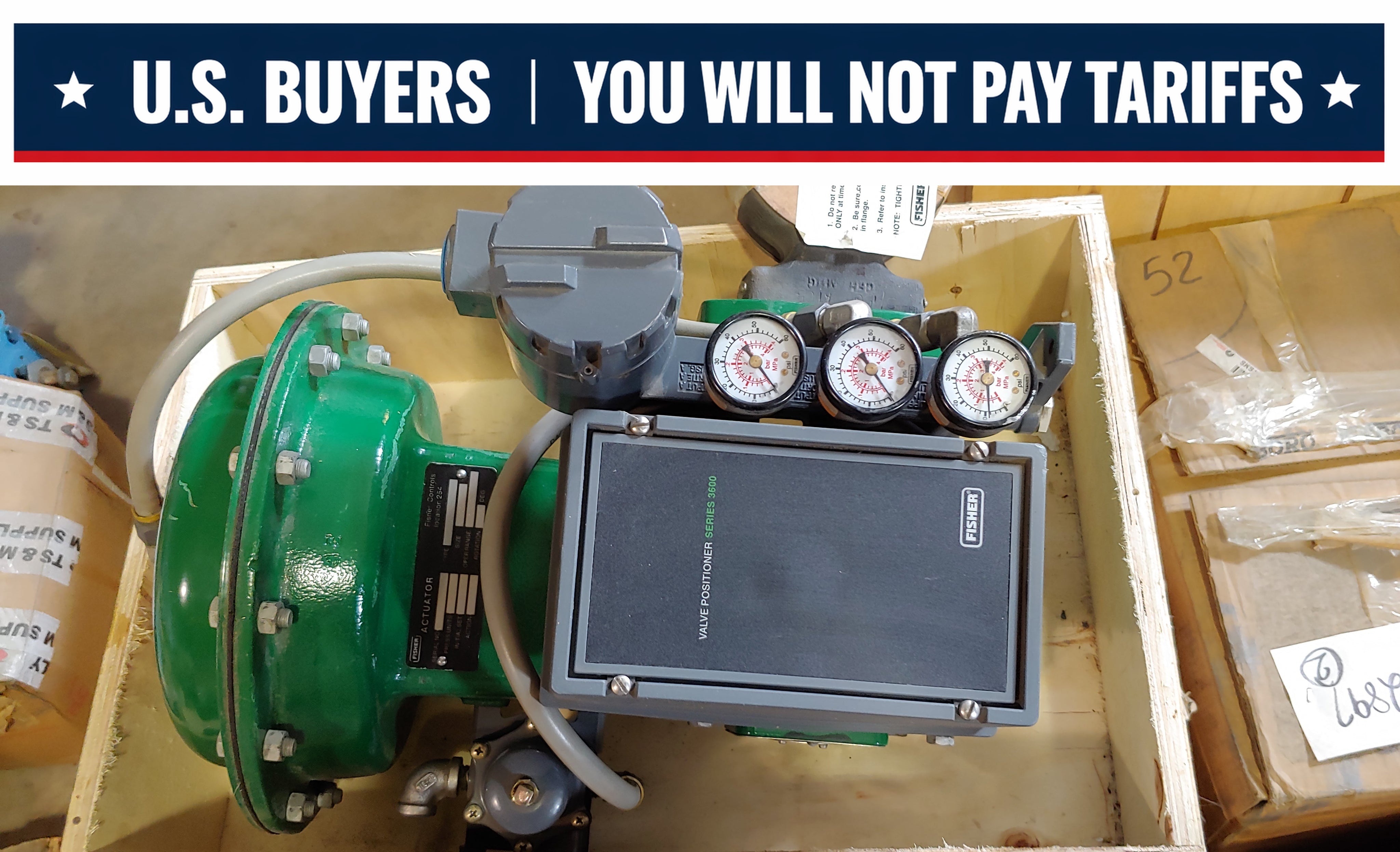

Fisher Control Valve 1051 Actuator with differential pressure gauge

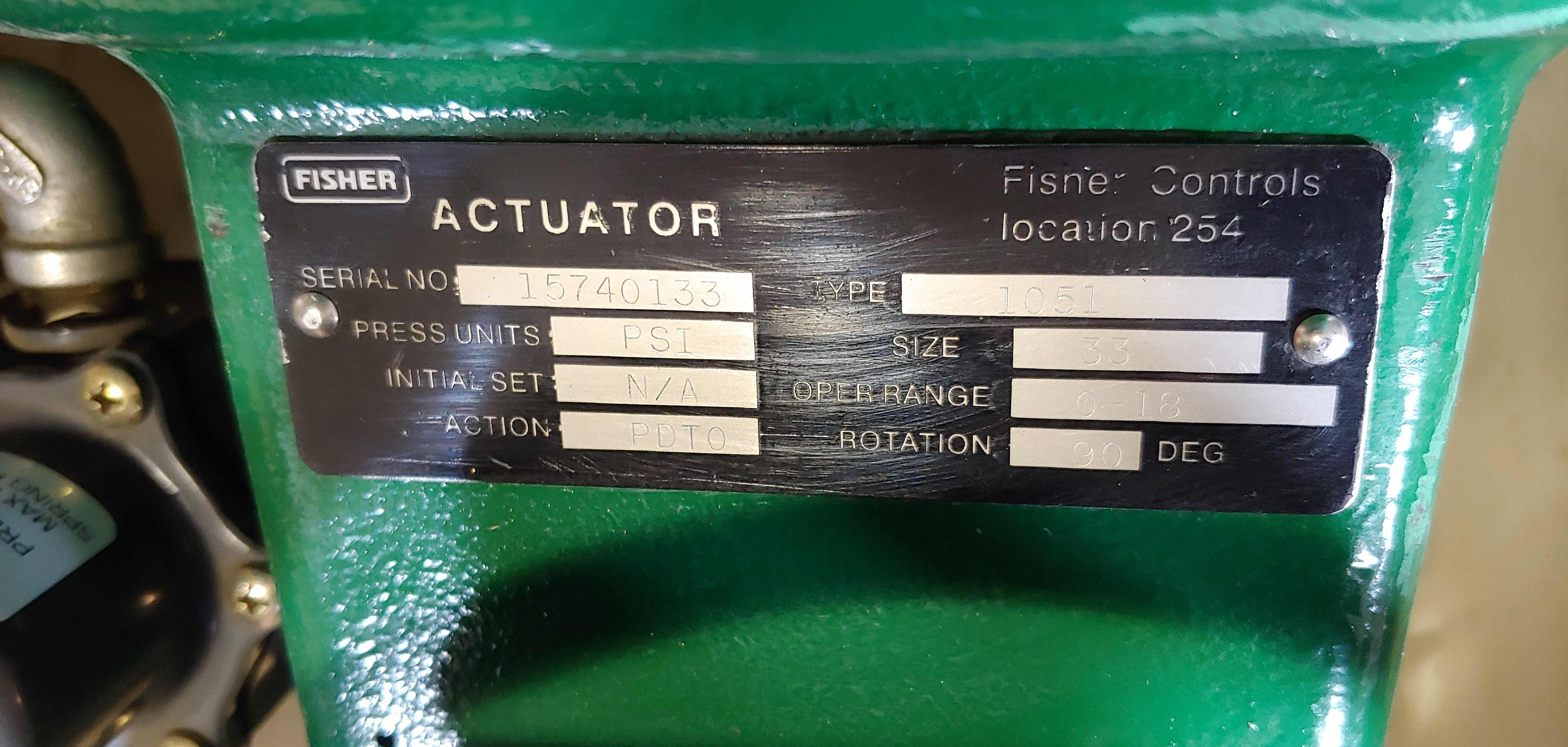

  • Type: 1051
  • S/N 15740133
  • Size: 33
  • Pressure: PSI
  • Operating Range: 0-18 PSI
  • Action: PDTO
  • Rotation: 90 degrees

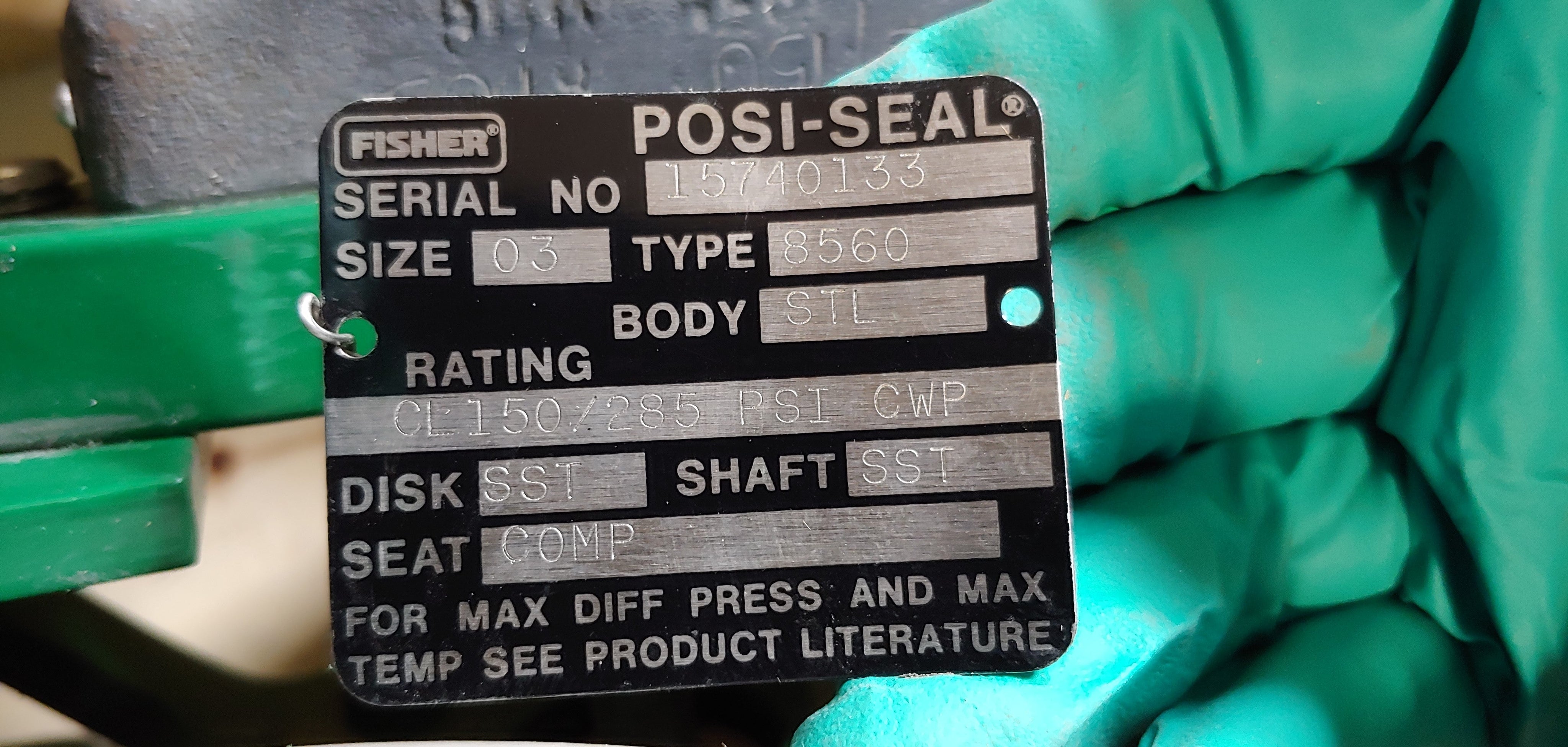

Body:
  • Type: 8560
  • Size: 3
  • Rating: CL150/285 PSI/CWP
  • Body: STL
  • Shaft: SST
  • Ball/Disk: SST
  • Seat: COMP
Differential Valve:
  • Series 3600
  • Input: 4-20 mA
