Home » Leeson 098000.00 C42D17FK1C DC Motor, 1/2 HP, 90 V, 1750 RPM

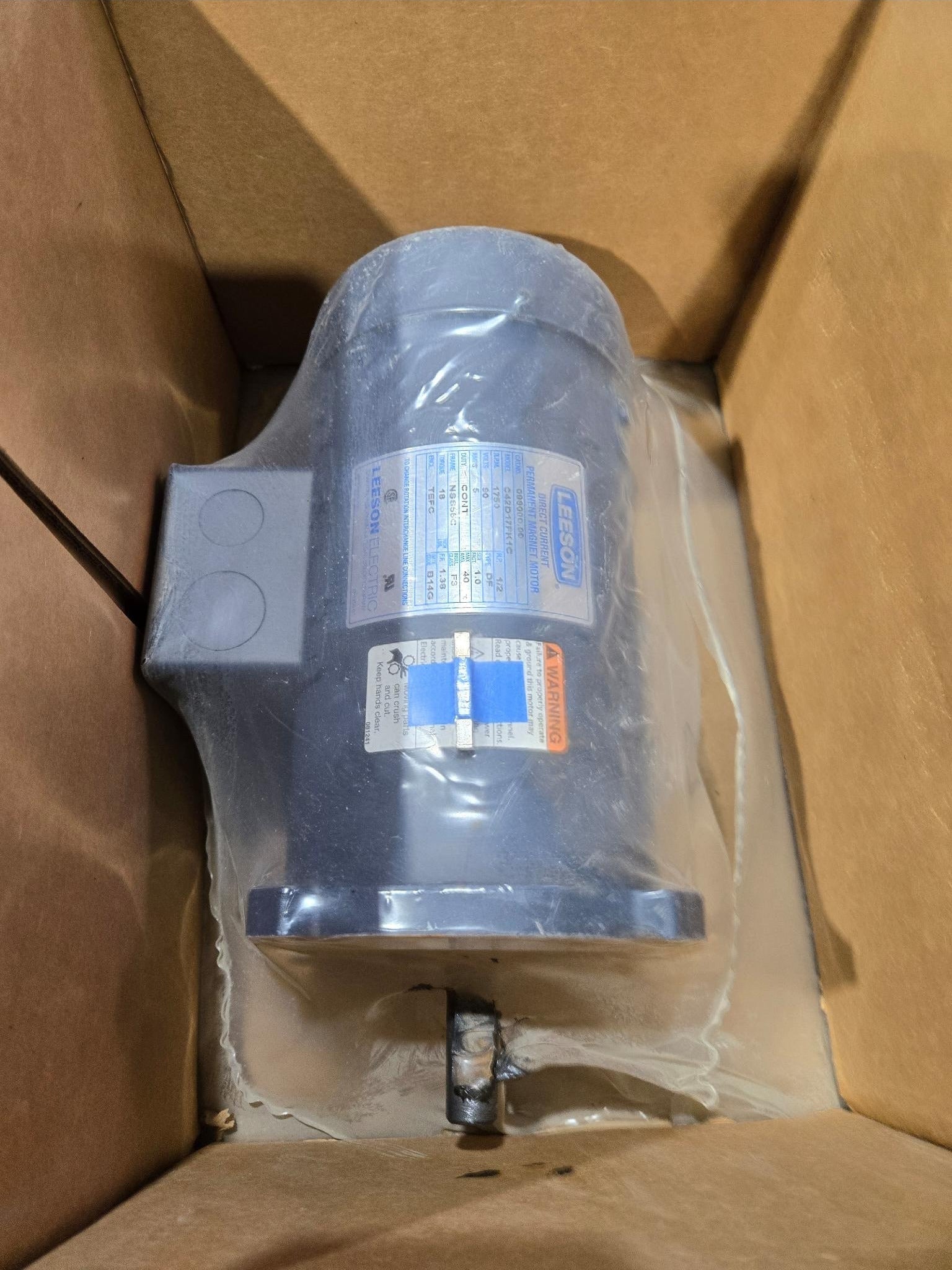

Leeson 098000.00 90 VDC motor in original packaging

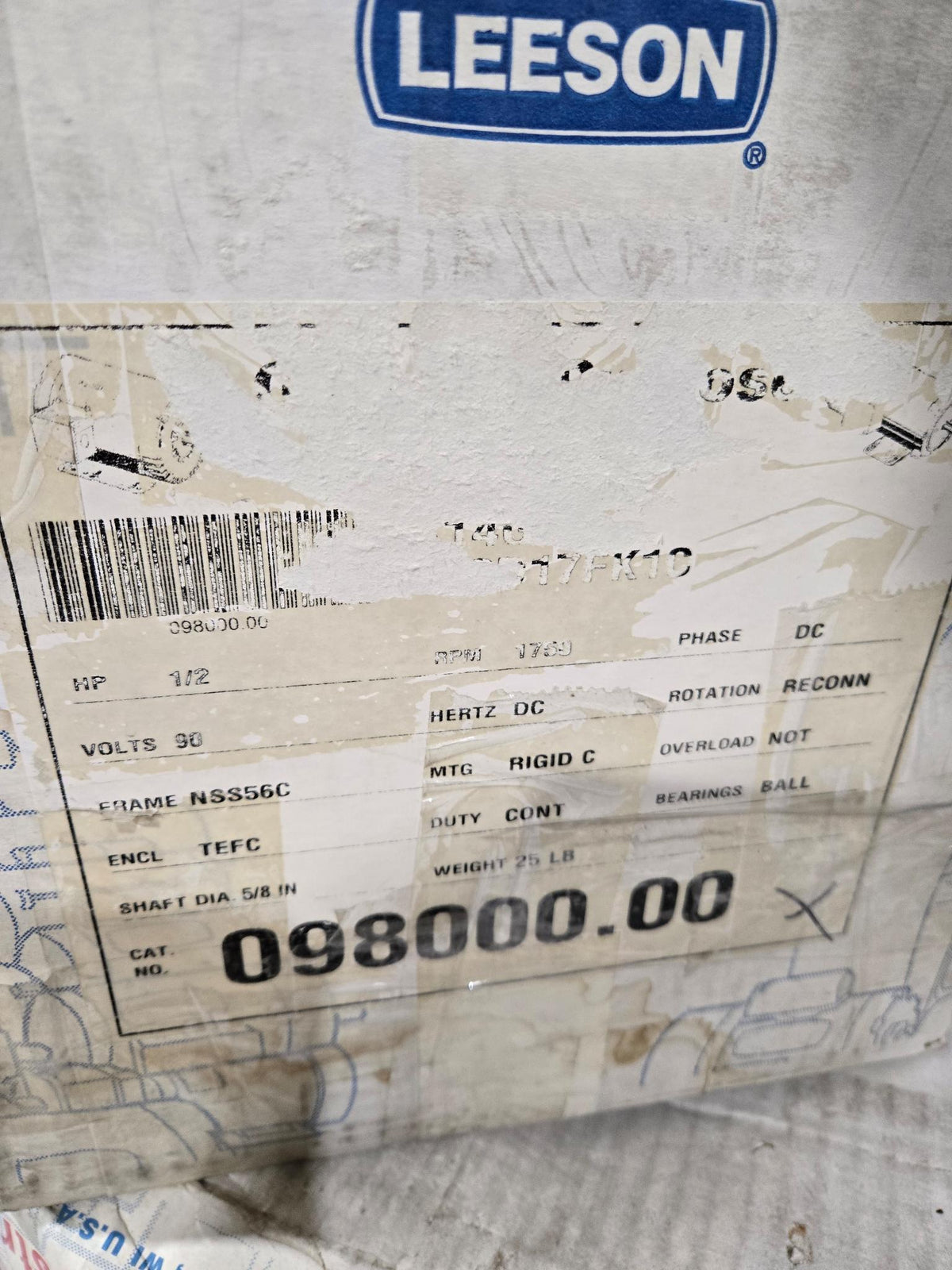

Leeson box label: 098000.00, 90 VDC

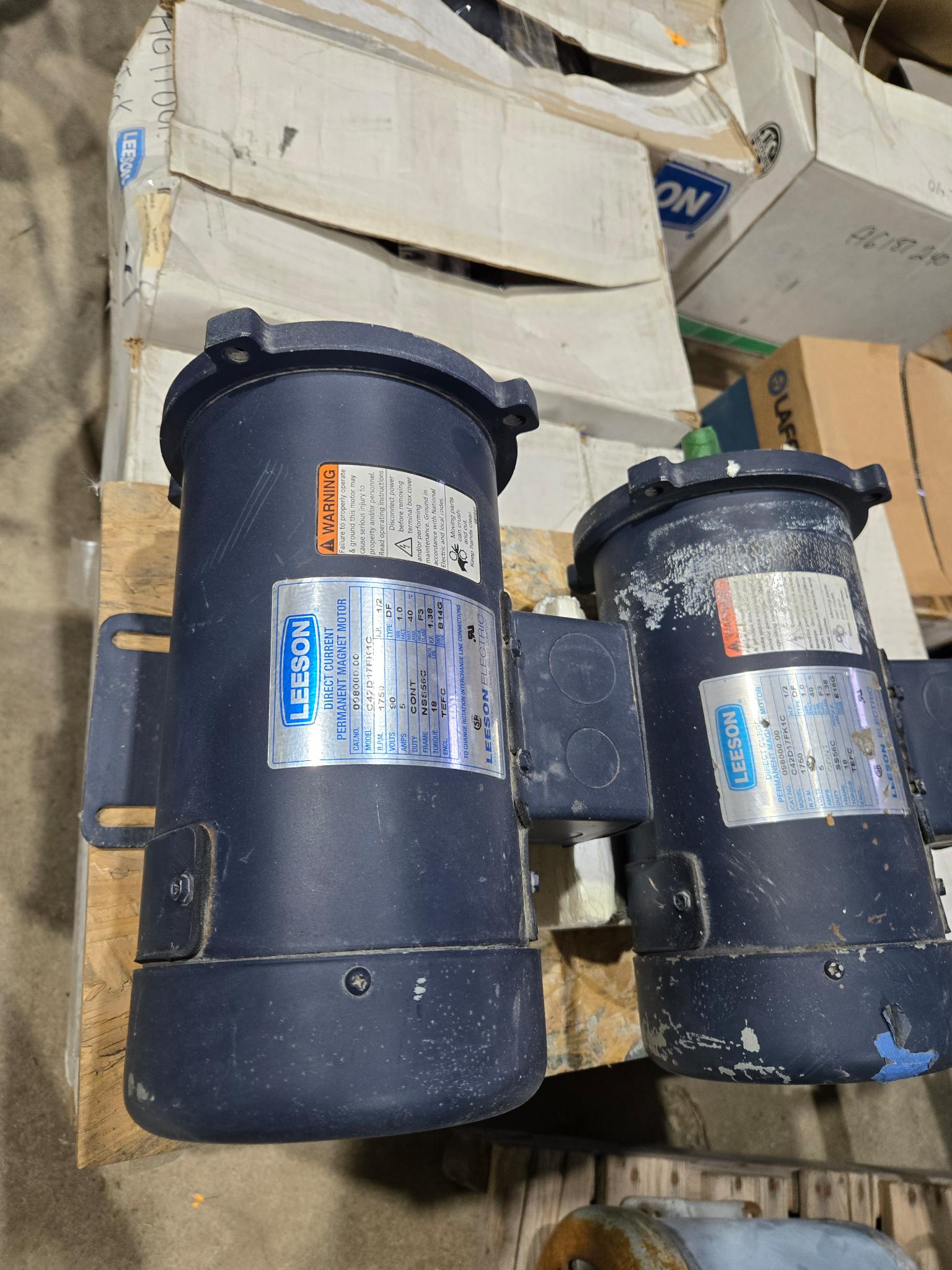

Leeson 90 VDC motor nameplates and storage condition
Leeson 098000.00 90 VDC motor in original packaging
Leeson box label: 098000.00, 90 VDC
Leeson 90 VDC motor nameplates and storage condition
Leeson

Leeson 098000.00 C42D17FK1C DC Motor, 1/2 HP, 90 V, 1750 RPM

Only 3 left
30.0 lb -  Parcel shipping available
$378.75 CAD
Parcel shipping is available to Canada and the United States.
Available rates are shown at checkout.
Equipment location: La Broquerie, MB, Canada. Pickup is by appointment only; contact us to confirm arrangements. No walk-in visits.

Leeson permanent-magnet DC motor, catalog 098000.00, model C42D17FK1C.

  • Rated output: 1/2 HP
  • Voltage: 90 VDC
  • Speed: 1750 RPM
  • Frame: NSS56C
  • Enclosure: TEFC
  • Duty: continuous
  • Rated current: 5 A
  • Shaft diameter: 5/8 in

Condition: New, never installed, with surface corrosion and cosmetic marks from storage. Original packaging is worn; see photos. Price is per motor.
