Nord Gear Drive and Motor - SK32100AZBH N180TC - 5 HP,3 HP, 460-230V

Nord Gear Drive and Motor - SK32100AZBH N180TC - 5 HP,3 HP, 460-230V

MFG: Nord Drivesystems

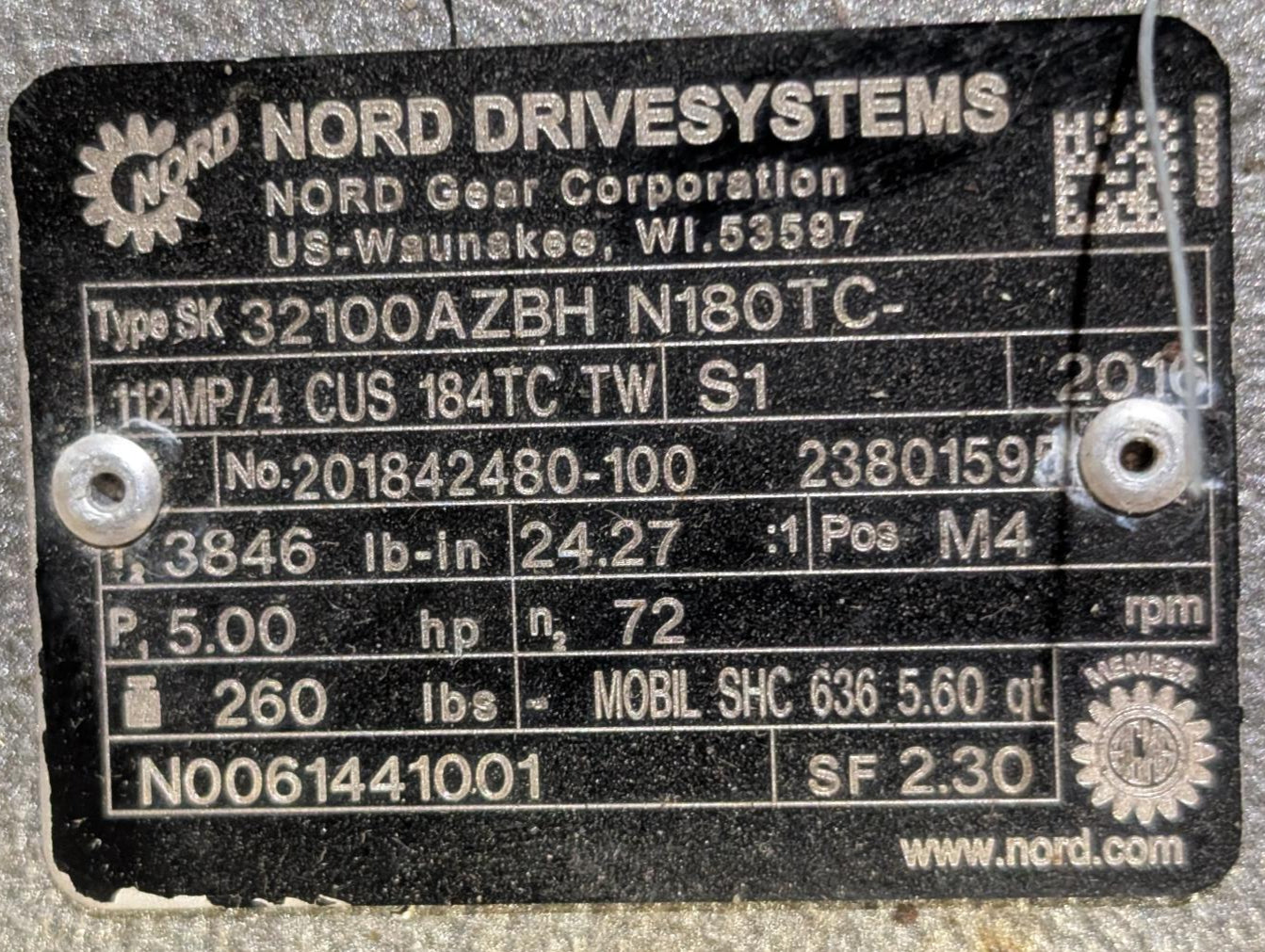

Type: SK32100AZBH N180TC

112MP/4 CUS 184TC TW

Product Name Helical-Worm NEMA Gearmotor

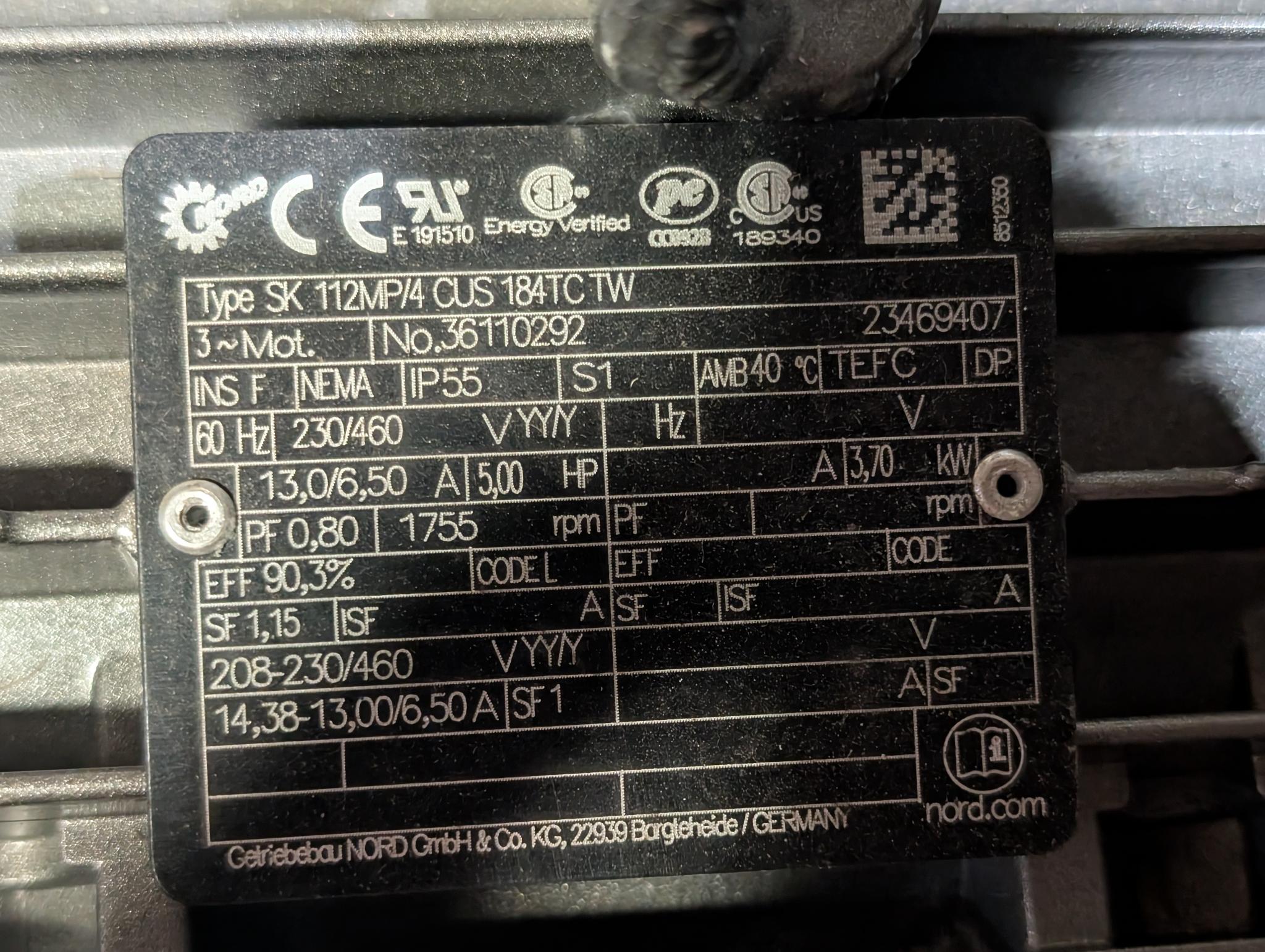

Motor Type 3-Ph AC Motor CUS
Motor Speed 1,755 rpm
Ratio 24.27
Output Speed 72.000 rpm
Service Factor 2.30
Nominal Output Torque (lb-in) 3,846.00
Max. Torque Capacity (lb-in) 9,028.00
Motor Power (HP) 5.000
Voltage (V) 230/460
Frequency (Hz) 60
Efficiency Class Premium EFF acc. to EISAct
Duty Cycle CONT-S1
Motor Enclosure Type IP55
Insulation Class F
Rated Current Low Volt (A) 13.00
Rated Current High Volt (A) 6.50
Power Factor 1 0.80
Environmental temp. motor 40°C
Gearbox Mounting Position M4
Housing Type Hollow Shaft/B14 Flange
Input Adapter N180TC
Input Adapter N180TC
Output Shaft Dimensions 2.000"

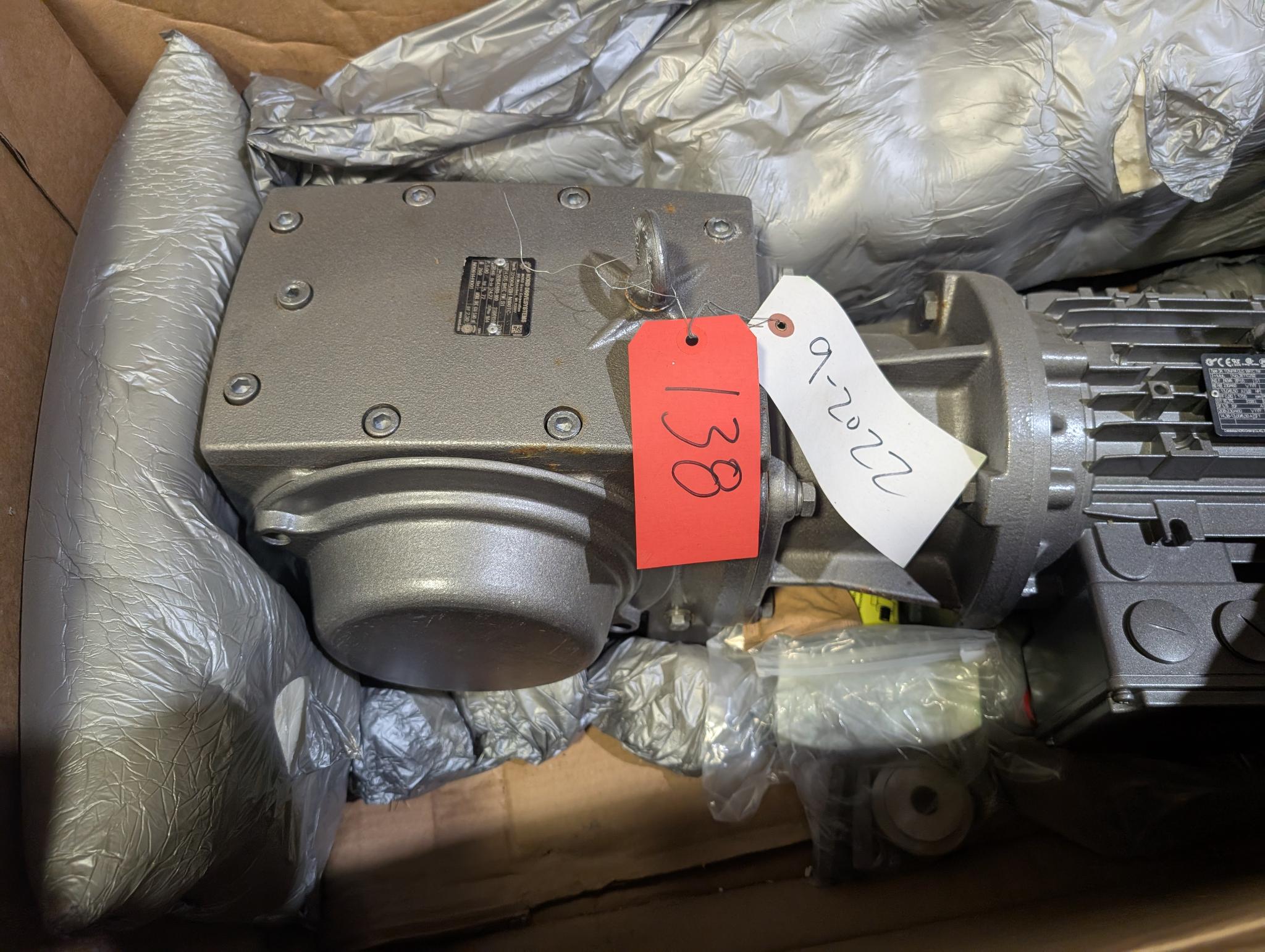

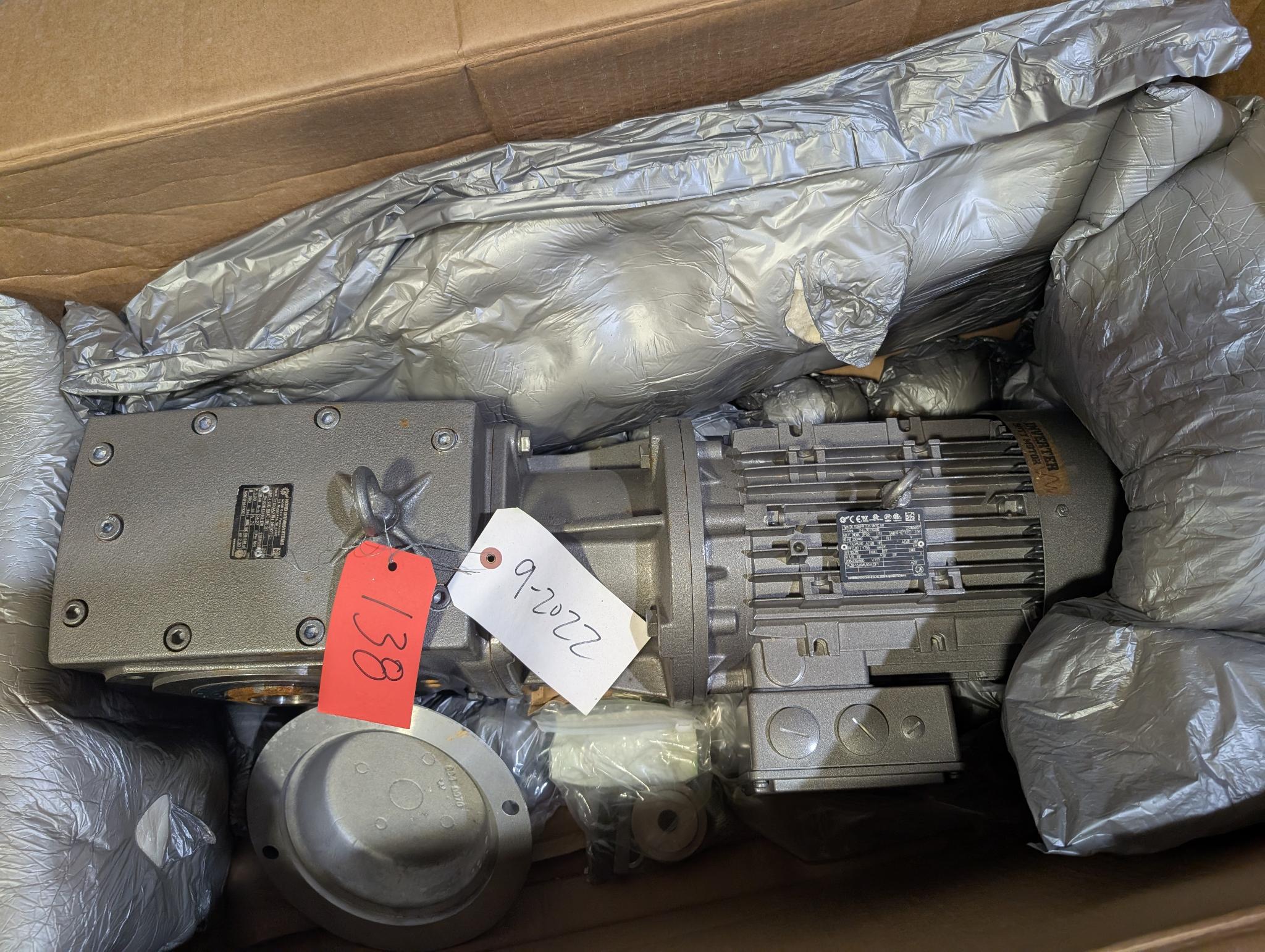

Condition: New, never installed
